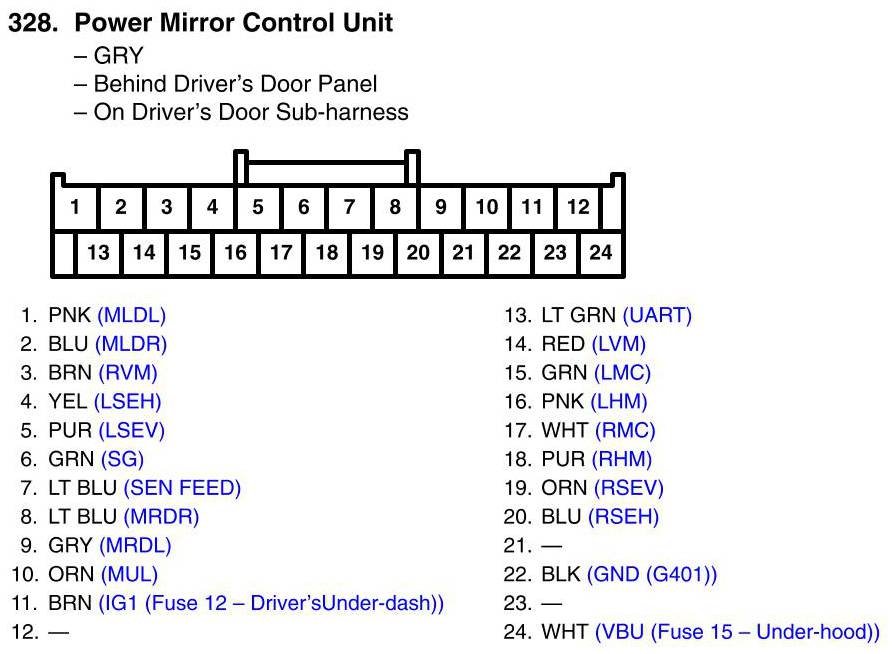

View 328 - Power Mirror Control Unit Connector View
View 328 - Power Mirror Control Unit Connector View
