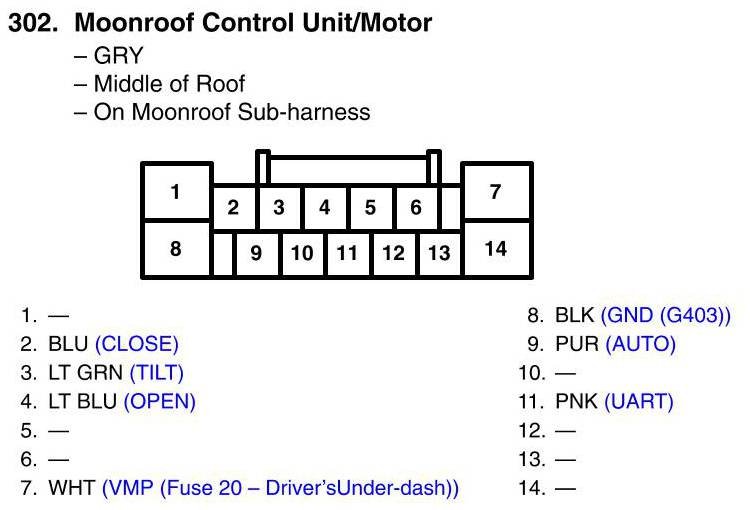

View 302 - Moonroof Control Unit/Motor Connector View
View 302 - Moonroof Control Unit/Motor Connector View
