Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 292 - C651 (Junction Connector) (SH-AWD) Connector View

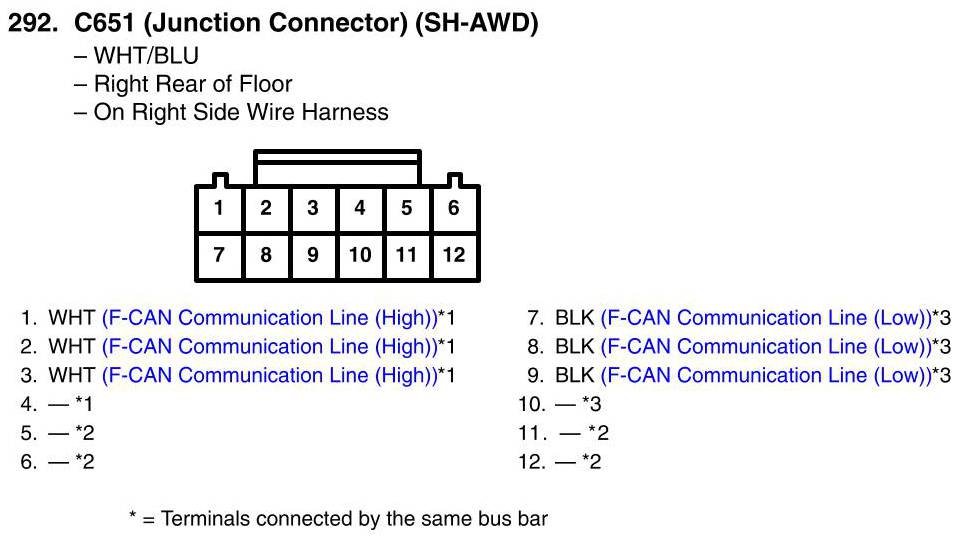

View 292 - C651 (Junction Connector) (SH-AWD) Connector View
