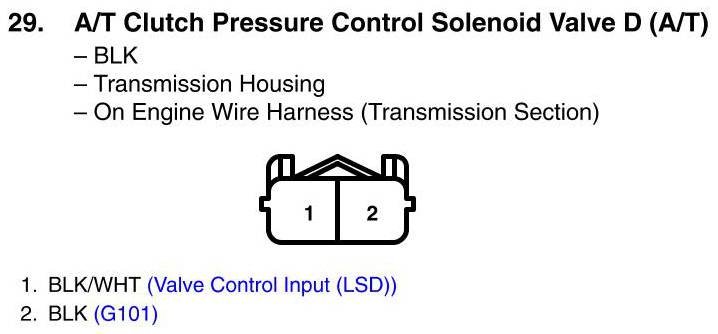

View 29 - A/T Clutch Pressure Control Solenoid Valve D (A/T) Connector View (A/T)
View 29 - A/T Clutch Pressure Control Solenoid Valve D (A/T) Connector View (A/T)
