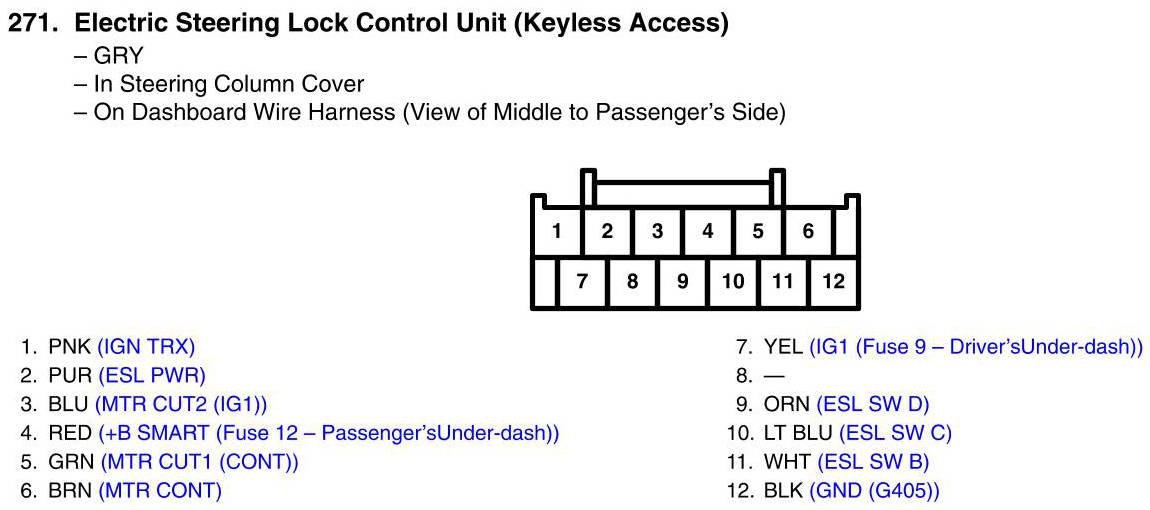

View 271 - Electric Steering Lock Control Unit (Keyless Access) Connector View
View 271 - Electric Steering Lock Control Unit (Keyless Access) Connector View
