Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 266 - Audio Remote Switch/HFL-Navigation Voice Control Switch (Navigation) Connector View

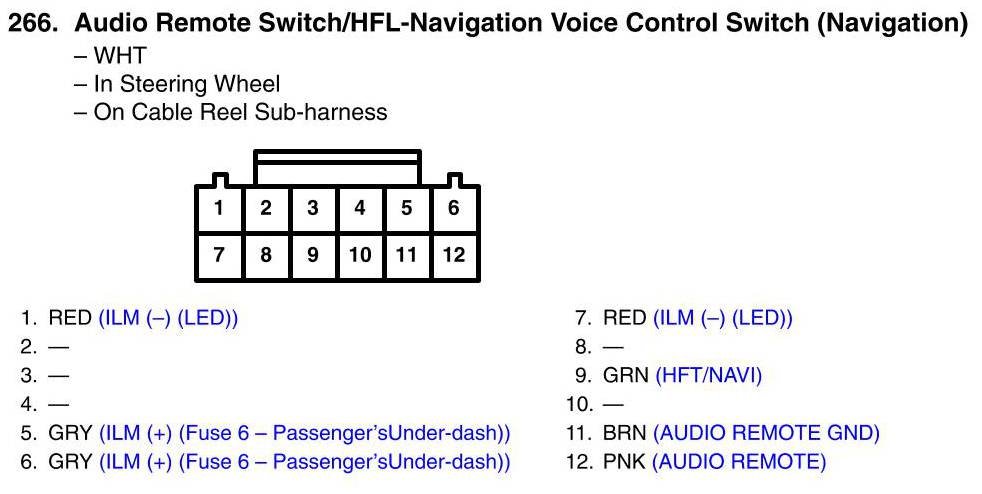

View 266 - Audio Remote Switch/HFL-Navigation Voice Control Switch (Navigation) Connector View
