Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 265 - Audio Remote Switch/HFL Switch (Without Navigation) Connector View

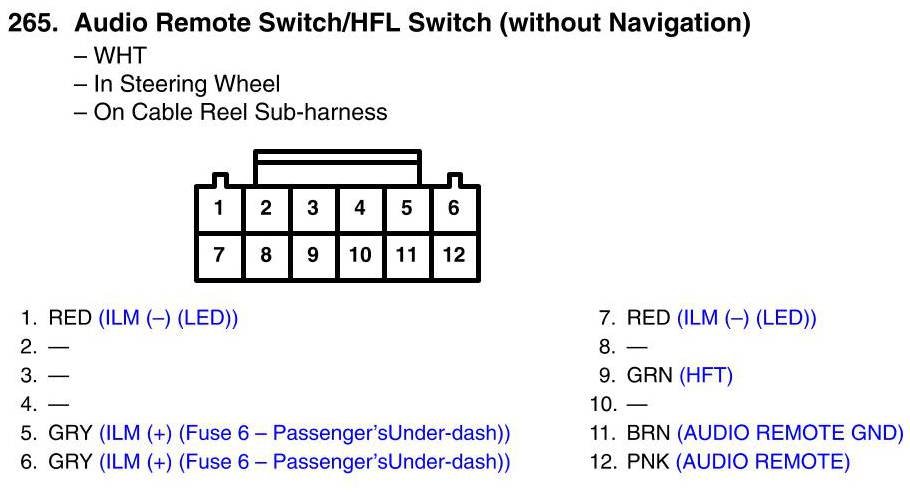

View 265 - Audio Remote Switch/HFL Switch (Without Navigation) Connector View
