Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 258 - Driver's Door Lock Actuator/Knob Switch/Key Cylinder Switch Connector View

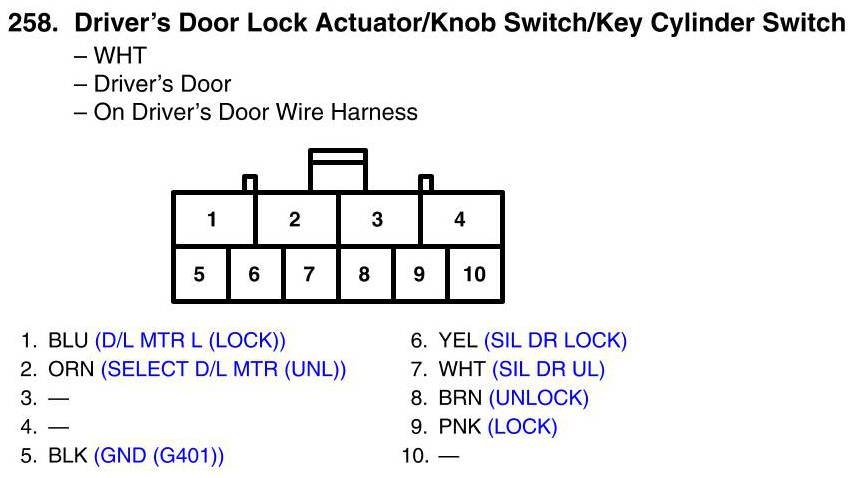

View 258 - Driver's Door Lock Actuator/Knob Switch/Key Cylinder Switch Connector View
