Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 248 - Front Passenger's Mode Control Motor Connector View

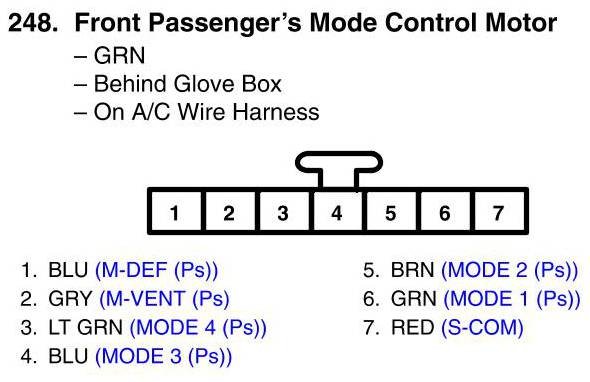

View 248 - Front Passenger's Mode Control Motor Connector View
