Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 211 - Driver's Power Seat Rear Up-Down Motor/Position Sensor Connector View

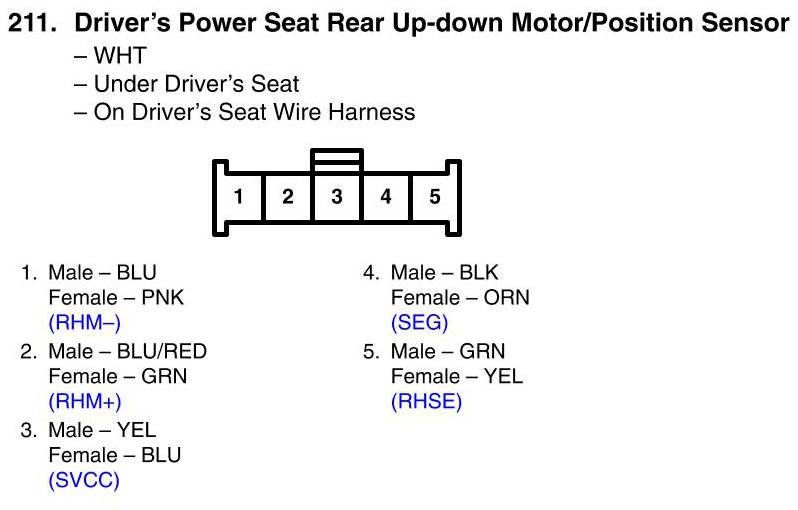

View 211 - Driver's Power Seat Rear Up-Down Motor/Position Sensor Connector View
