Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 201 - Yaw Rate-Lateral/Longitudinal Acceleration Sensor (SH-AWD) Connector View

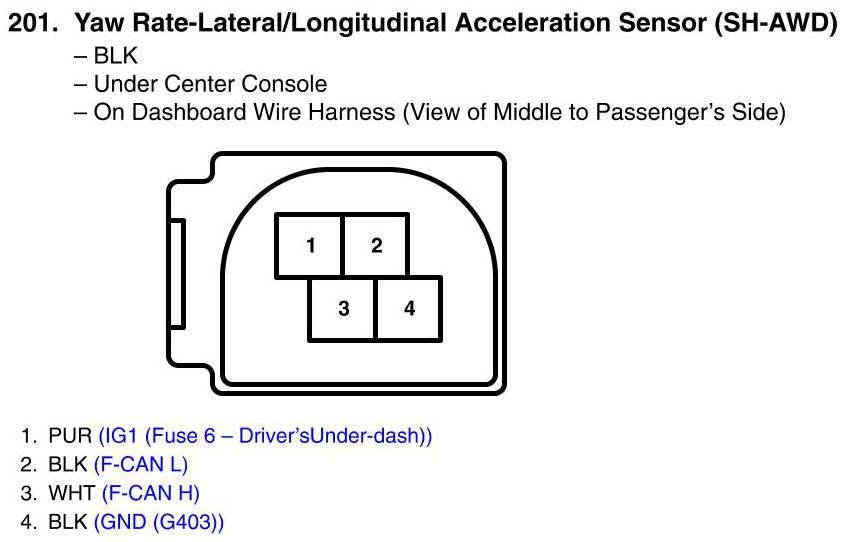

View 201 - Yaw Rate-Lateral/Longitudinal Acceleration Sensor (SH-AWD) Connector View
