Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 177 - A/T Shift Lock Solenoid/Park Pin Switch (A/T) Connector View

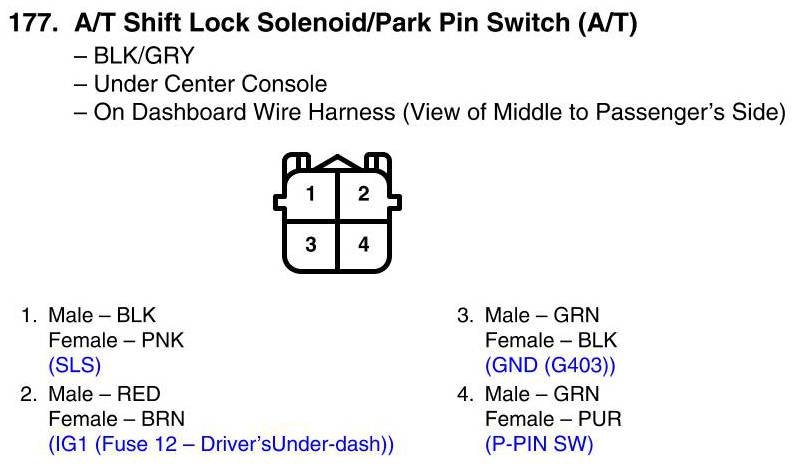

View 177 - A/T Shift Lock Solenoid/Park Pin Switch (A/T) Connector View
