Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 170 - RF Unit (Keyless Access) Connector View

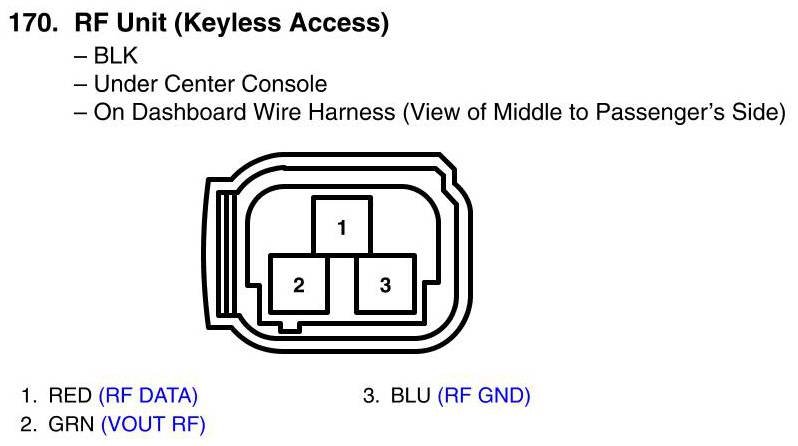

View 170 - RF Unit (Keyless Access) Connector View
