Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 105 - Rear Window Defogger Noise Condenser Connector View

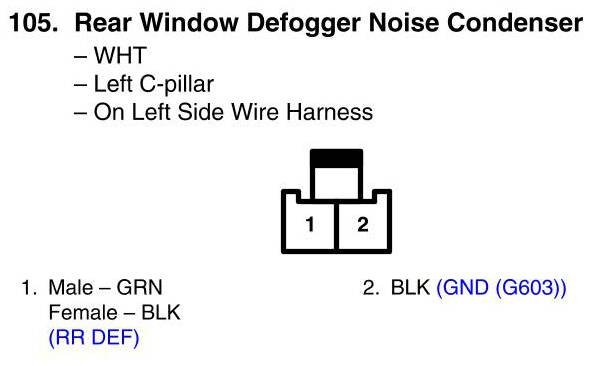

View 105 - Rear Window Defogger Noise Condenser Connector View
