Home >> Acura >> 2012 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

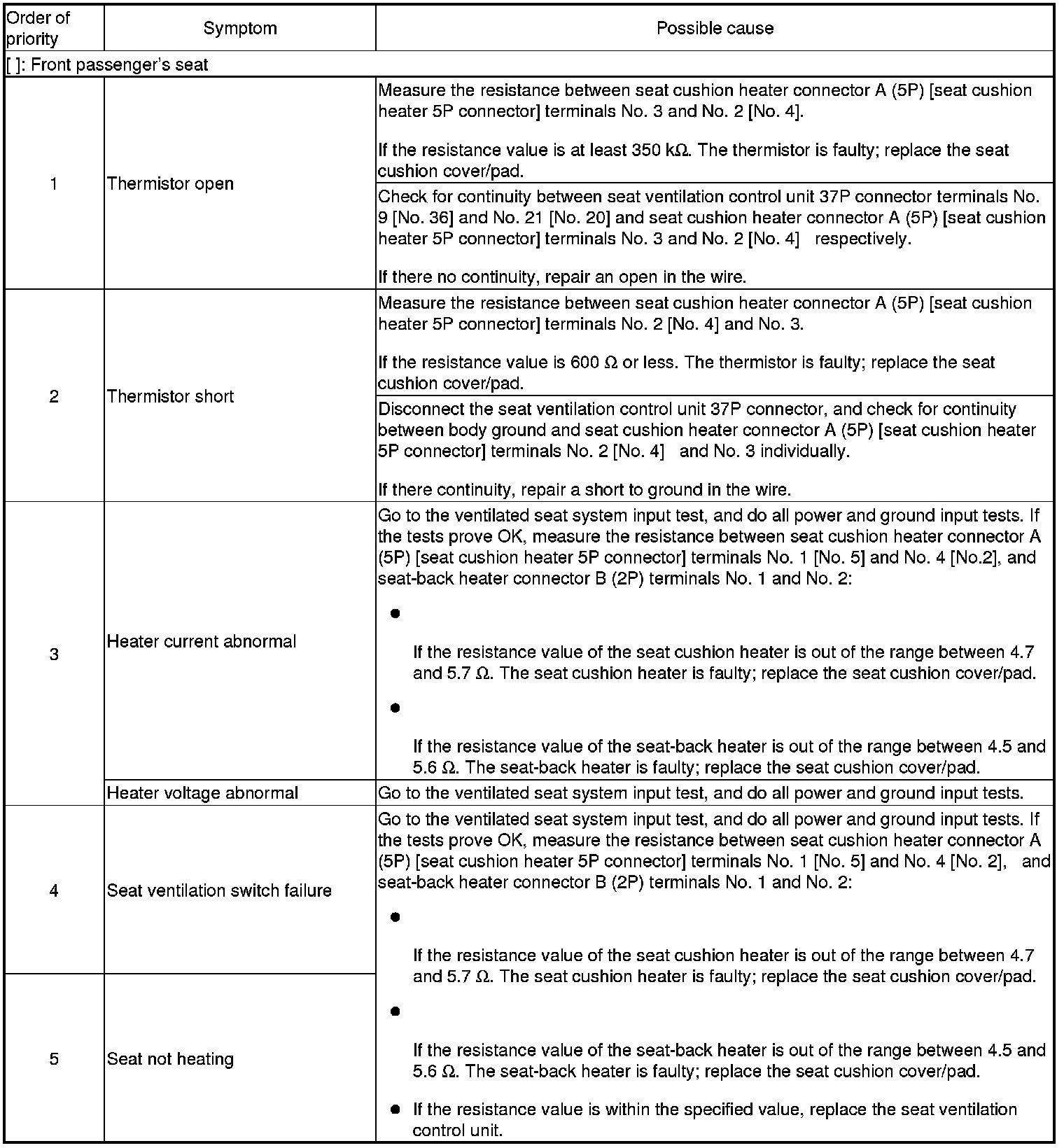

Ventilated Seats Symptom Troubleshooting

1. Troubleshoot the seat ventilation system in this order:
