Front Bumper Reinforcement: Description and Operation

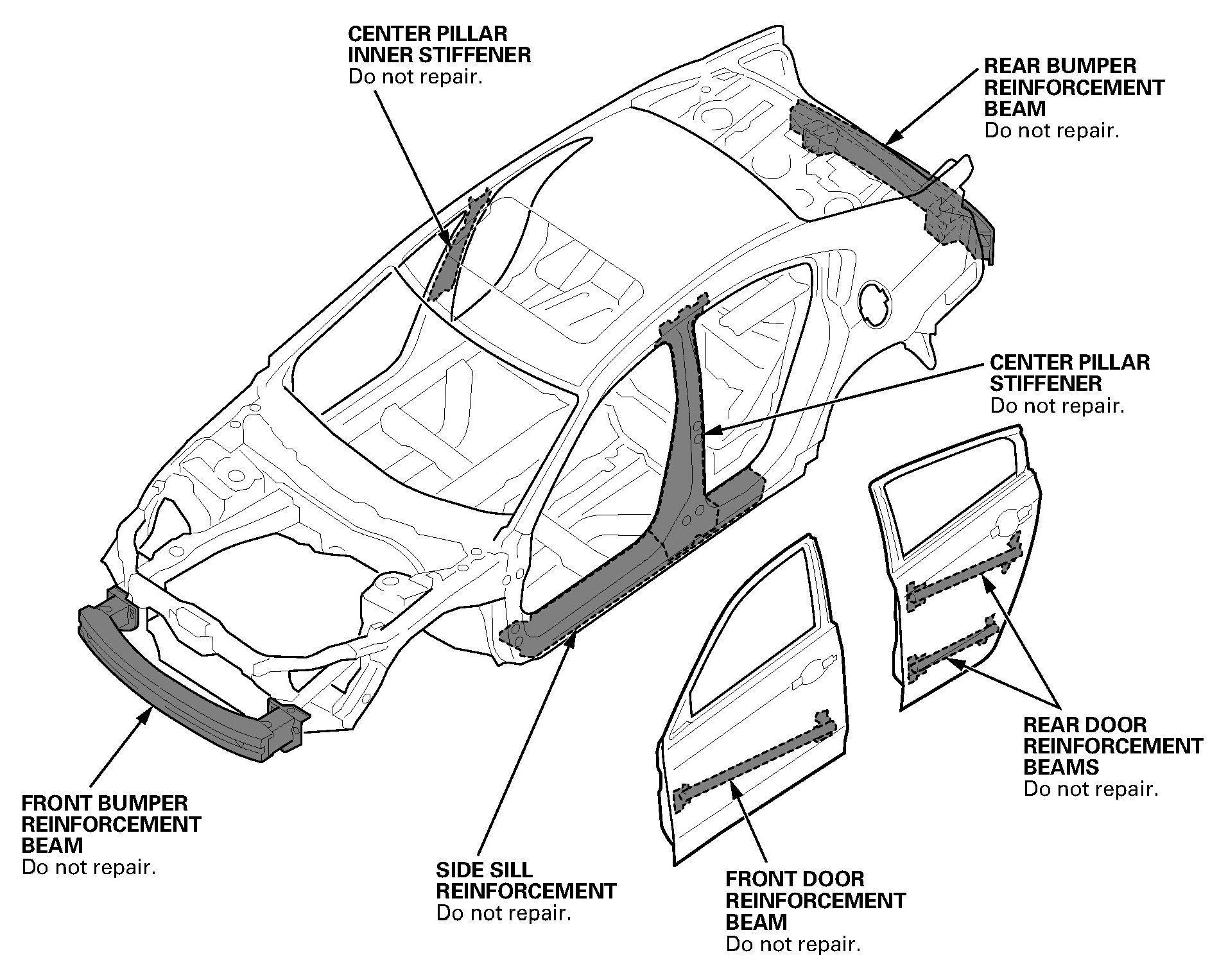

Door, Bumper Reinforcement Beams, and Boron Steel (USIBOR 1500) Parts

The door reinforcement beams are made from high-strength steel.

The center pillar stiffener, the side sill reinforcement, and the center pillar inner stiffener are made from boron steel (USIBOR 1500).

If high-strength steel is heated, the strength of the steel is reduced. If high-strength steel is damaged, for example, in a collision, and the door reinforcement beams or the boron steel parts are bent, the beams or the boron steel parts may crack when attempting to straighten them. If a door beam is damaged, the whole door panel assembly must be replaced.

The front and rear bumper reinforcement beams are made of aluminum alloy.

For this reason, the door, bumper reinforcement beams, and the boron steel parts should NEVER be repaired, and NEVER be welded by MAG welding; they must be replaced by only spot welding and MIG brazing if they are damaged.
