Audio Unit Power Switch Will Not Turn Off (Without Navigation)

Audio System Symptom Troubleshooting - Audio unit power switch will not turn off

Audio unit power switch will not turn off (without navigation)

NOTE:

- Check the vehicle battery condition first Battery Test.
- Check the connectors for poor connections or loose terminals.
- Check for aftermarket accessories plugged info the vehicle's accessory power sockets.

1. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.

2. Push the VOLUME/POWER knob off to see if the audio unit turns off.

Does the audio unit turn off?

YES -

Go to step 3.

NO -

Replace the audio unit Audio Unit Removal / Installation.

3. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

Does the audio unit turn off?

YES -

Operation is normal.

NO -

Go to step 4.

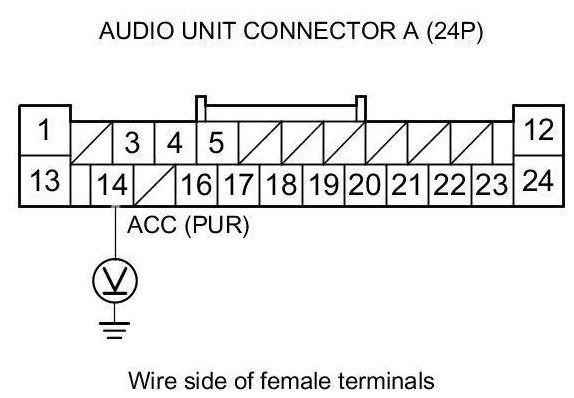

4. Measure the voltage between audio unit connector A (24P) terminal No. 14 and body ground.





Is there battery voltage?

YES -

Check for short to power on the PUR wire.

NO -

Substitute a known-good audio unit Audio Unit Removal / Installation, and recheck. If the symptom/indication goes away, replace the original audio unit Audio Unit Removal / Installation.
