Audio System Information Does Not Display On the Audio-HVAC Display Unit (Without Navigation)

Audio System Symptom Troubleshooting - Audio system information does not display on the audio-HVAC display unit

Audio system information does not display on the audio-HVAC display unit (without navigation)

NOTE:

- Check the vehicle battery condition first Battery Test.
- Check the connectors for poor connections or loose terminals.

1. Check for poor connections or loose terminals at the audio-HVAC display unit 12P connector and audio unit connector D (20P).

Are the connections or terminals OK?

YES -

Go to step 3.

NO -

Repair poor connections or loose terminals, and recheck.

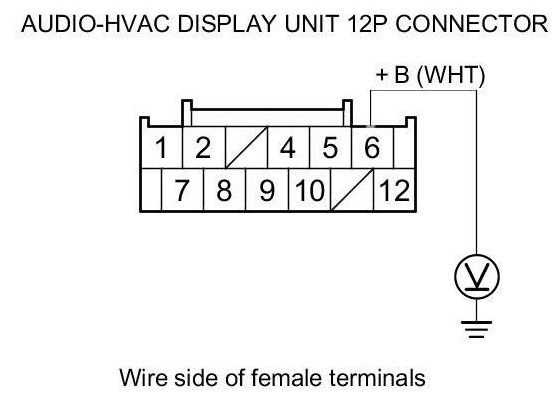

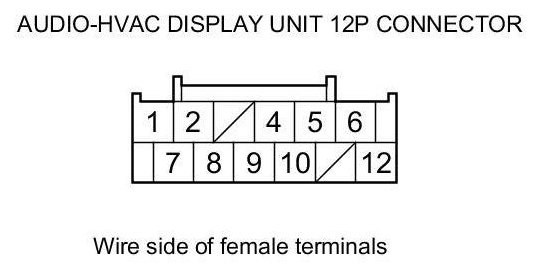

2. Measure the voltage between audio-HVAC display unit 12P connector terminal No. 6 and body ground.





Is there battery voltage?

YES -

Go to step 4.

NO -

Repair an open in the wire between the No. 15 (10 A) fuse in the under-hood fuse/relay box and the audio-HVAC display unit.

3. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.

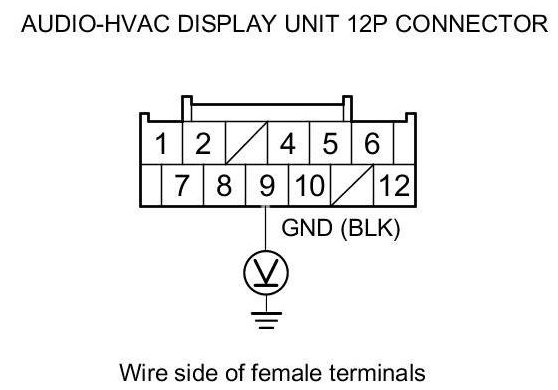

4. Measure the voltage between audio-HVAC display unit 12P connector terminal No. 9 and body ground.





Is there less than 0.2 V?

YES -

Go to step 5.

NO -

Repair an open or high resistance in the wire between the audio-HVAC display unit and body ground (G501) Audio Wire Harness.

5. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

6. Disconnect the audio-HVAC display unit 12P connector.

7. Disconnect audio unit connector D (20P).

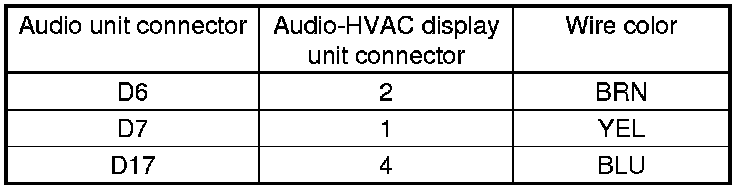

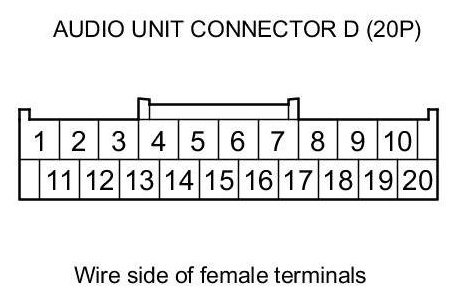

8. Check for continuity between audio unit connector D (20P) and the audio-HVAC display unit 12P connector according to the table.













Is there continuity?

YES -

Go to step 9.

NO -

There is an open in the wire(s) between the audio unit and the audio-HVAC display unit. Repair or replace the affected shielded harness.

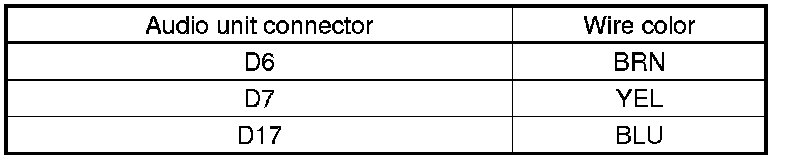

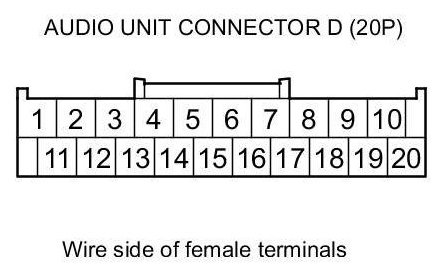

9. Check for continuity between the audio unit connector D (20P) and body ground according to the table.









Is there continuity?

YES -

There is a short to body ground in the wire(s) between the audio unit and the audio-HVAC display unit. Repair or replace the affected shielded harness.

NO -

Go to step 10.

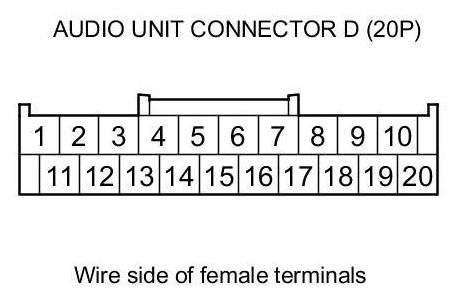

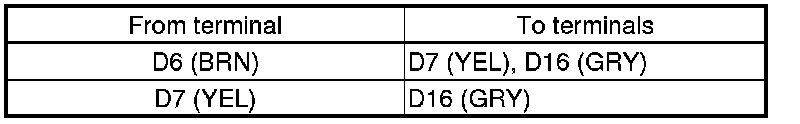

10. Check for continuity between the terminals of audio unit connector D (20P) according to the table.









Is there continuity between any of the terminals?

YES -

There is a short in the wires between the audio unit and the audio-HVAC display unit. Replace the affected shielded harness.

NO -

Substitute a known-good audio-HVAC display unit Audio-HVAC Display Unit Removal/Installation, then reconnect all of the connectors, and recheck. If the symptom/indication goes away, replace the original audio-HVAC display unit Audio-HVAC Display Unit Removal/Installation. If the symptom/indication is still present, replace the audio unit Audio Unit Removal / Installation.
