A/T Clutch Pressure Control Solenoid Valve C Replacement

A/T Clutch Pressure Control Solenoid Valve C Replacement

1. Do the battery removal procedure Removal and Replacement.

2. Remove the air cleaner housing Service and Repair.

3. Disconnect the A/T clutch pressure control solenoid valve C connector (A).

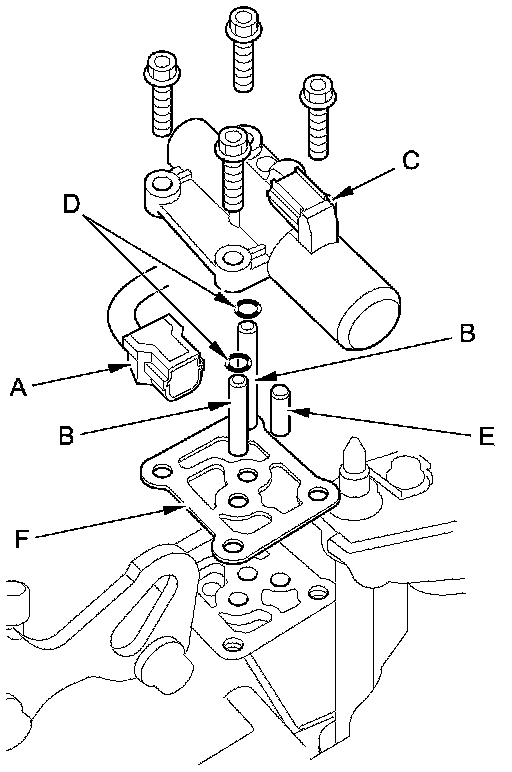

4. Remove A/T clutch pressure control solenoid valve C, the ATF pipes (B), the O-rings (D), the ATF joint pipe (E), and the gasket (F).

5. Clean the mounting surfaces and the fluid passages of the transmission housing.

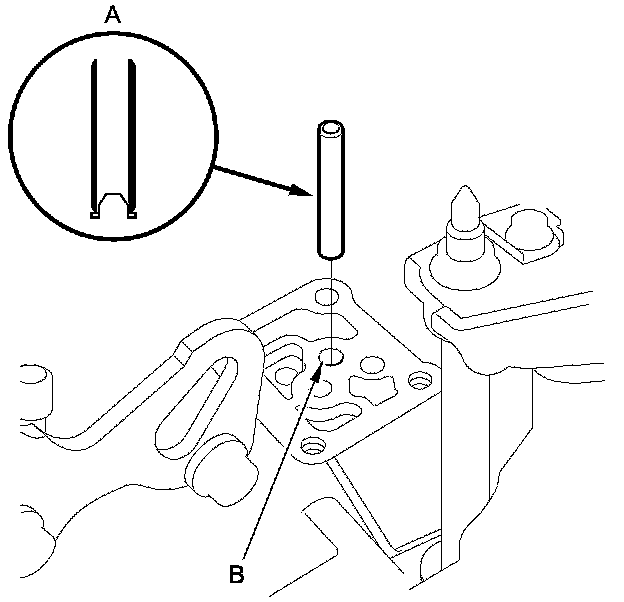

6. Install the 8 x 53 mm ATF pipe (A) with the filter end into its mounting hole (B).

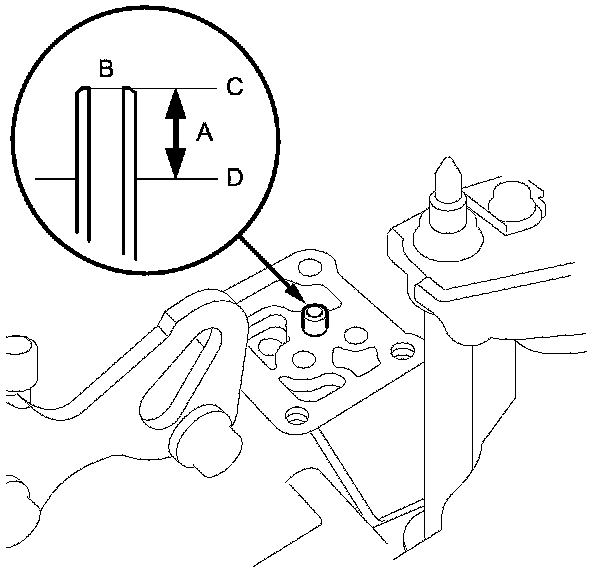

7. Check the height (A) of the 8 x 53 mm ATF pipe (B) between the top (C) of the pipe and the solenoid valve body mounting surface (D). The height is about 7.0 mm (0.28 in). If the height is over 7.0 mm (0.28 in), push the pipe until it bottoms in the accumulator body.

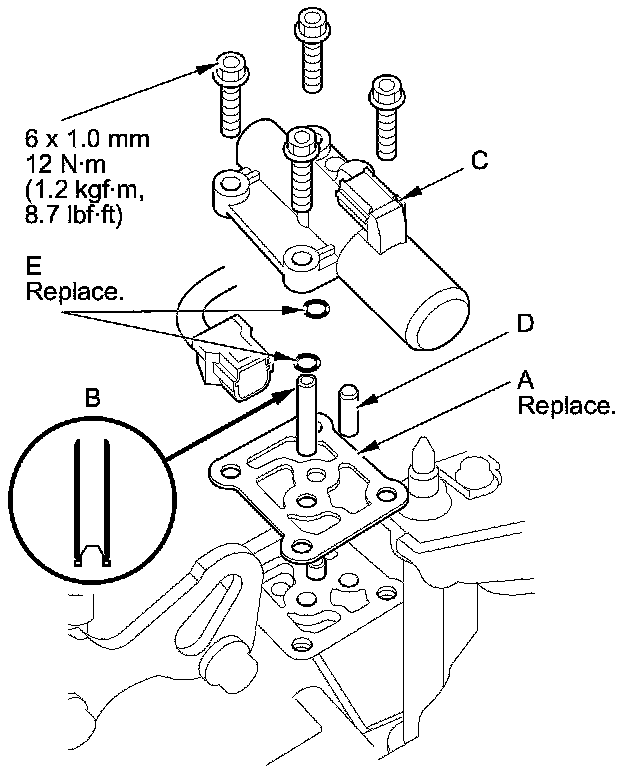

8. Install a new gasket (A) on the transmission housing, and install the 8 x 36 mm ATF pipe (B) with the filter end into the transmission housing and the 8 x 25.2 mm ATF joint pipe (D).





9. Install new O-rings (E) over the ATF pipes.

10. Install a new A/T clutch pressure control solenoid valve C.

11. Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.

12. Install the air cleaner housing Service and Repair.

13. Do the battery installation procedure Removal and Replacement.
