Transfer Breather Hose Replacement (A/T)

Transfer Breather Hose Replacement

1. Raise the vehicle on a lift, and make sure it is supported securely.

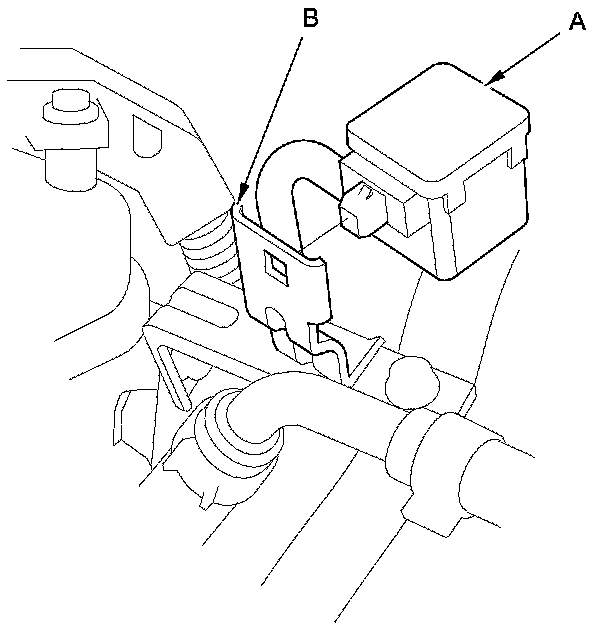

2. Remove the transfer breather box (A) from its bracket (B).






3. Remove the breather hose clamp (A) from the hose clamp bracket (B), and remove the hose clamp (C) from the vacuum hose (D).





4. Remove the harness clamp (E) on the breather hose from the engine harness (F).

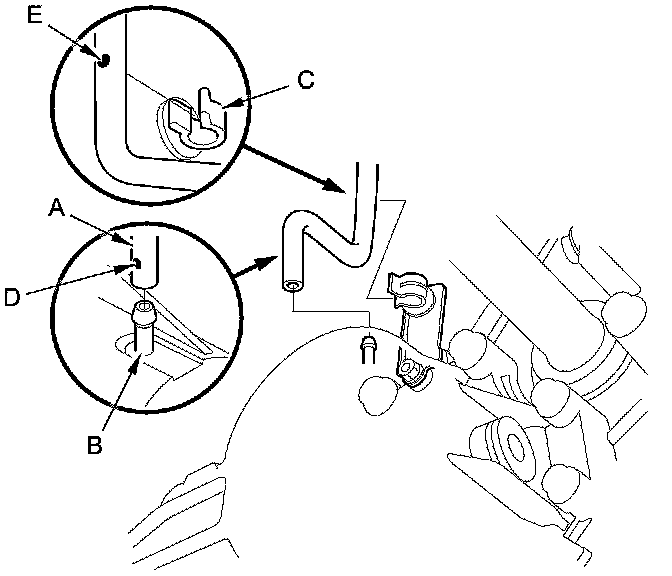

5. Disconnect the breather hose (A) from the transfer breather pipe (B), and remove the breather hose from the hose clamp (C).





6. Install the breather hose over the breather pipe with the dot mark (D) facing the rear of the vehicle, and install the hose on its clamp at the dot mark (E).

7. Install the breather hose clamp on its bracket, and install the hose clamp on the vacuum hose at the mark.

8. Install the harness clamp on the engine harness.

9. Install the transfer breather on its bracket.
