Transfer Output Shaft Transmission Housing Bearing Replacement (A/T)

Transfer Output Shaft Transmission Housing Bearing Replacement

Special Tools Required

- Driver Handle, 15 x 135L 07749-0010000
- Bearing Driver Attachment, 72 x 75 mm 07746-0010600

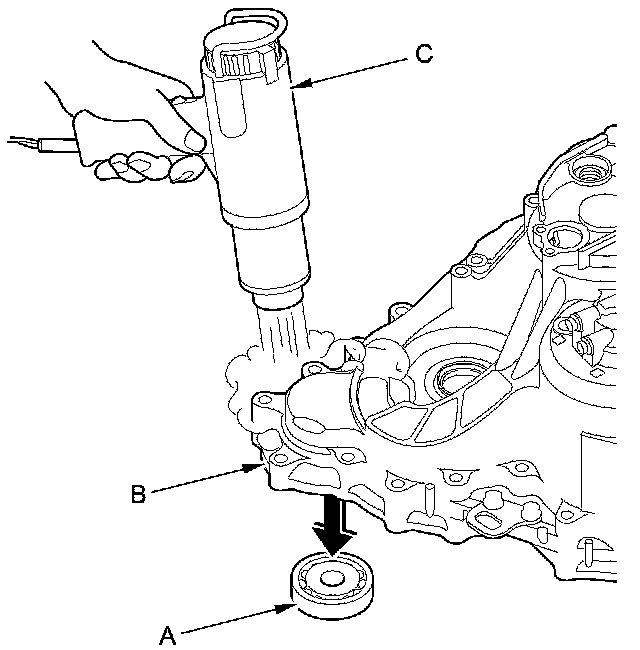

1. Remove the transmission housing bearing (A) from the transmission housing (B) by heating the transmission housing to about 212 °F (100 °C) using a heat gun (C). Do not heat the transmission housing more than 212 °F (100 °C).

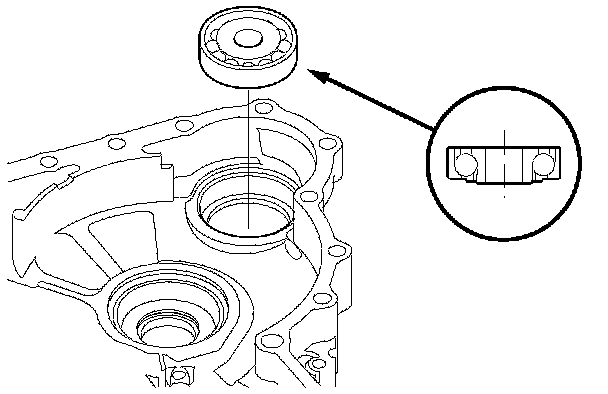

2. Install a new bearing in the transmission housing in the direction shown.

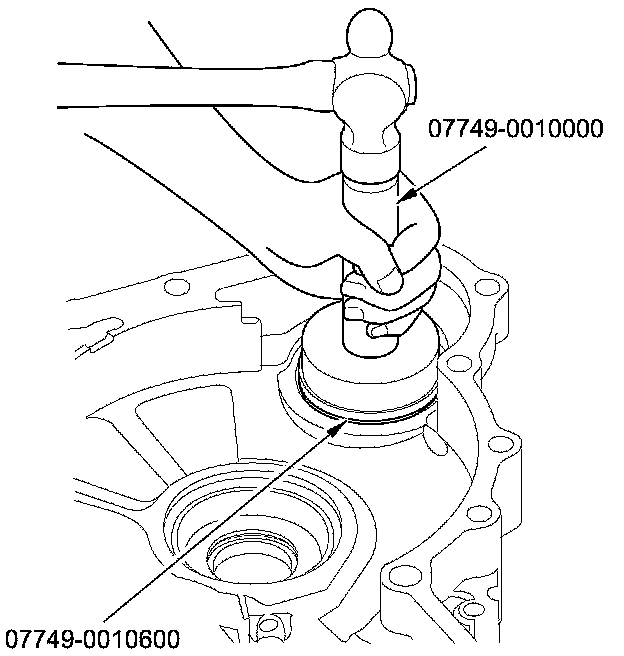

3. Drive a new bearing until it bottoms in the housing using the driver handle and the 72 x 75 mm attachment.
