Home >> Acura >> 2011 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Locations >> Transfer Assembly Component Location Index (M/T)

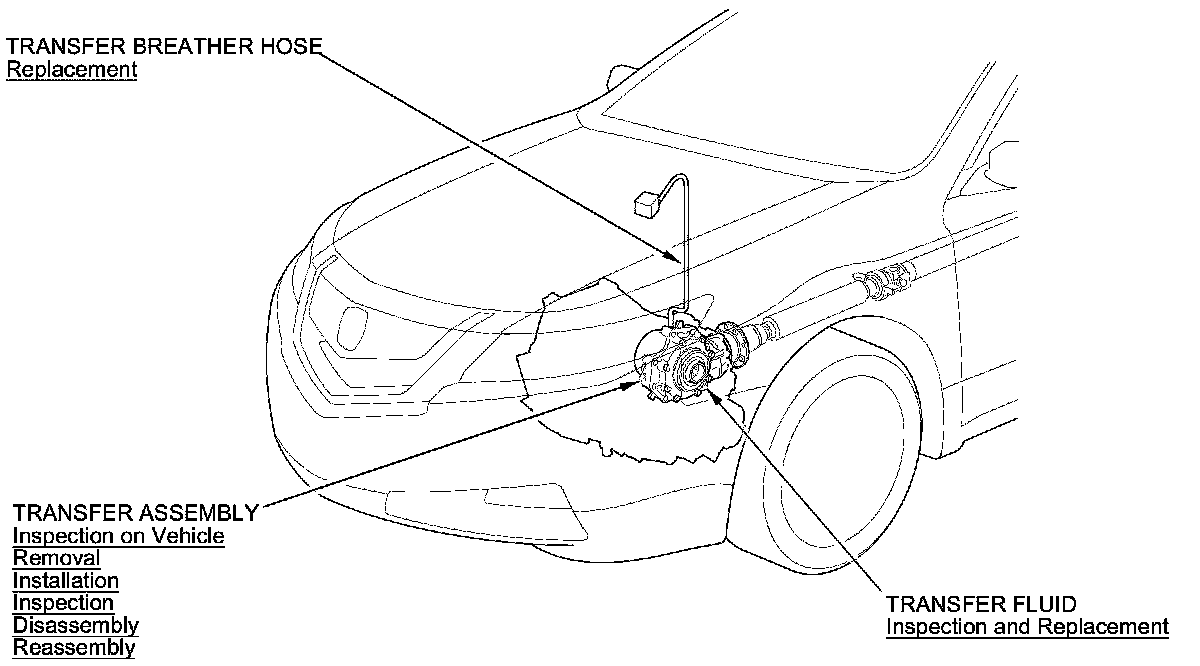

Transfer Assembly Component Location Index (M/T)

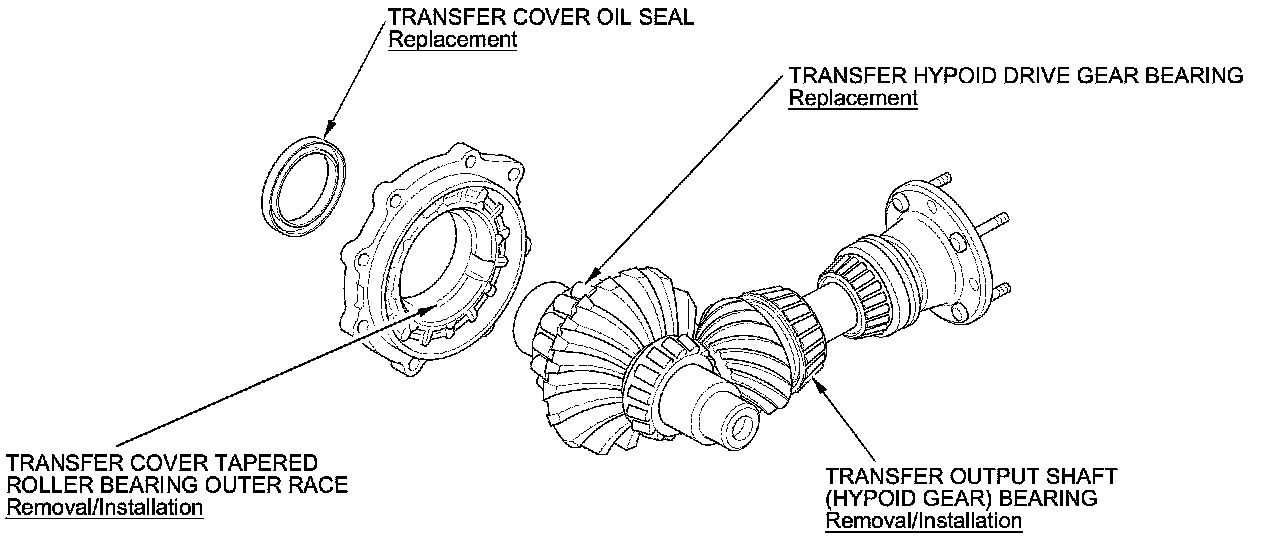

Transfer Assembly Component Location Index
