M/T Shift Arm Clearance Inspection

M/T Shift Arm Clearance Inspection

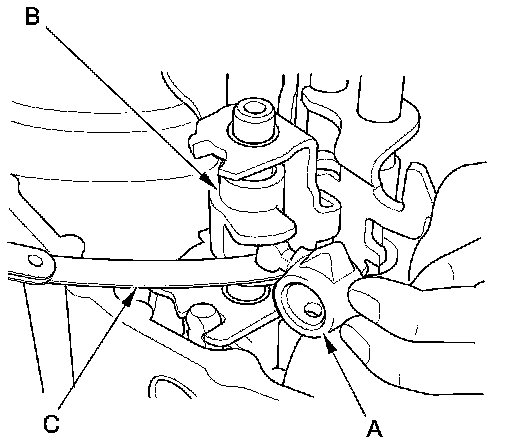

1. Measure the clearance between the shift arm (A) and the shift piece (B) with a feeler gauge (C). If the clearance exceeds the service limit, go to step 2.

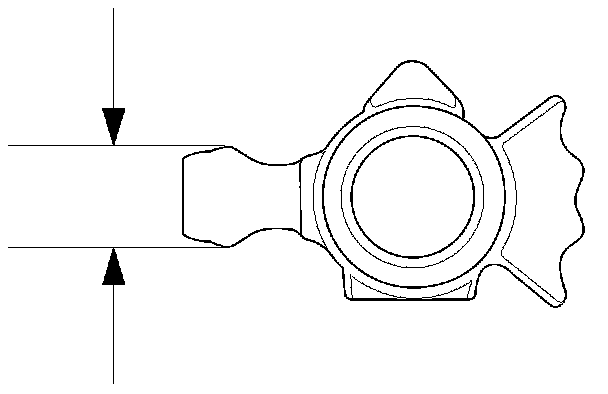

2. Measure the width of the shift arm.

- If the width is not within the standard, replace the shift arm.
- If the width is within the standard, replace the shift piece.
