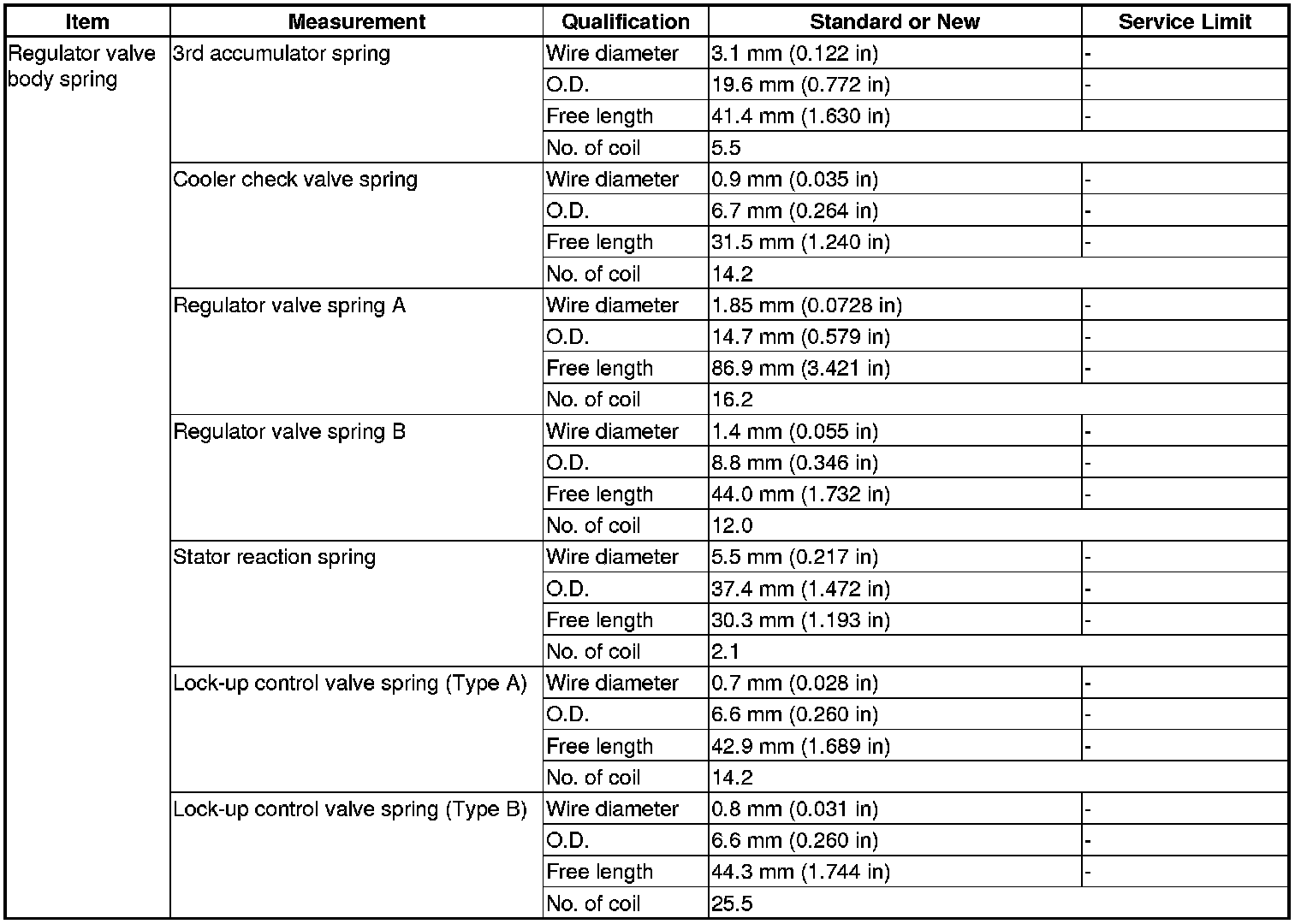

Regulator Valve Body Spring Specification(s) (A/T)
Regulator Valve Body Spring Specification(s) (A/T)
Regulator valve body spring
Regulator valve body spring
