Main Valve Body spring Specification(s) (A/T)
Main Valve Body spring Specification(s) (A/T)

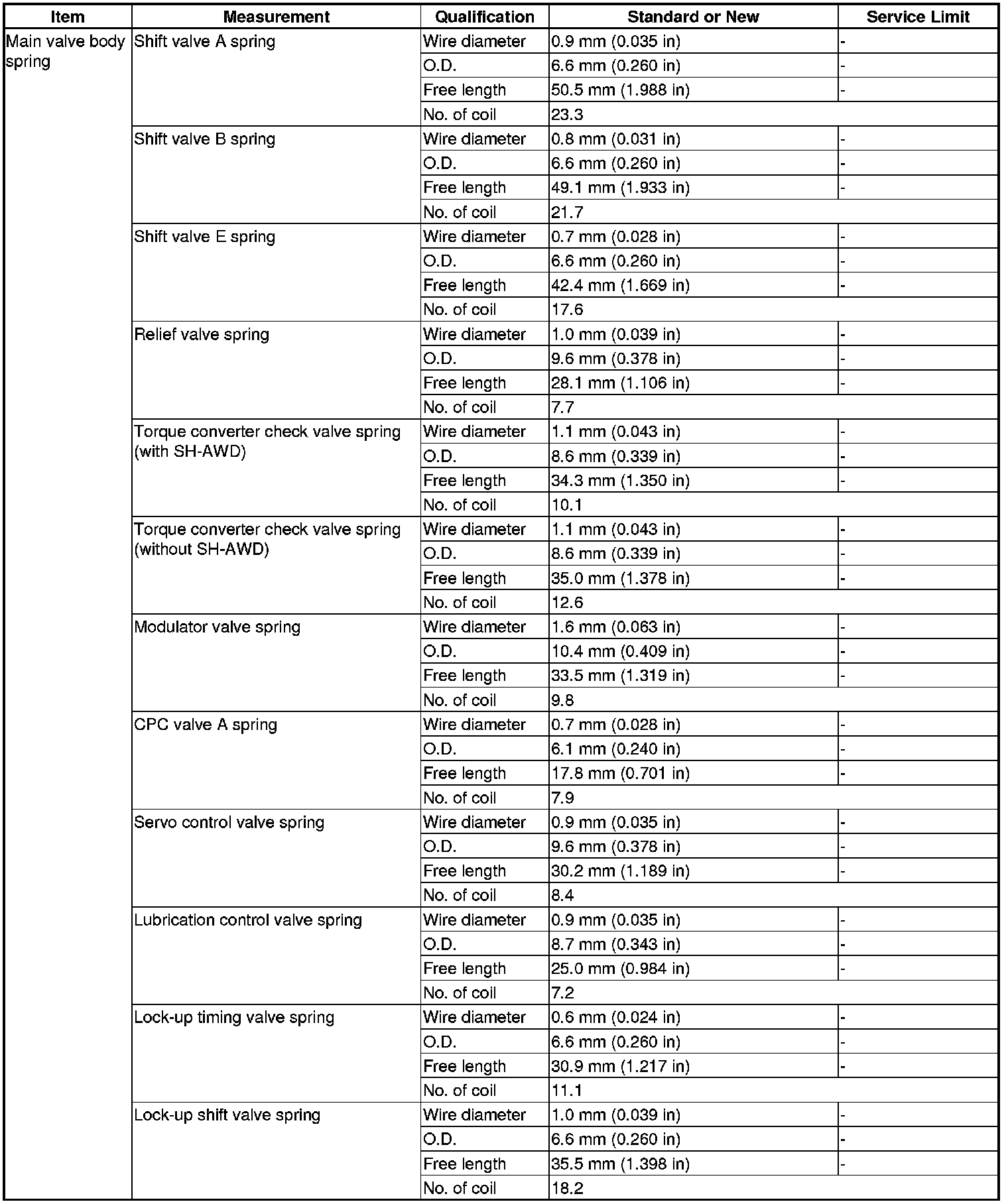

Main valve body spring
Main valve body spring
