A/T Housing Reverse Idler Gear Removal/Installation (A/T)

A/T Housing Reverse Idler Gear Removal/Installation

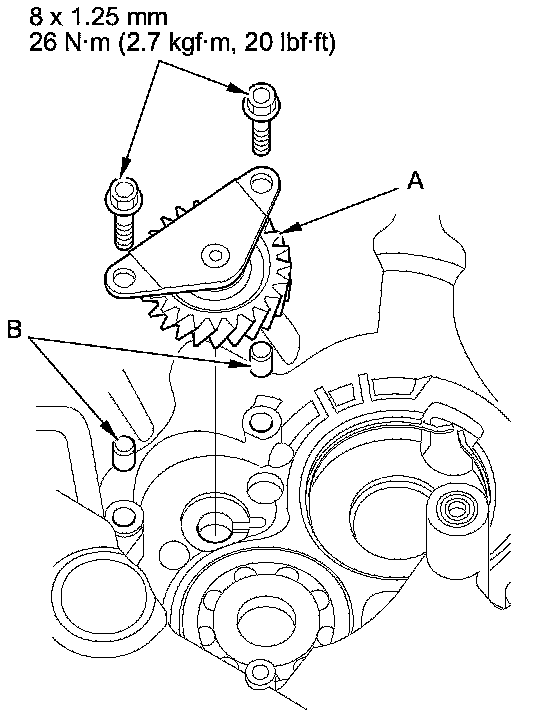

1. Remove the reverse idler gear assembly (A) from the transmission housing.





2. Install the reverse idler gear assembly with the two dowel pins (B) in the transmission housing.
