A/T Housing Main Shaft Bearing Installation (A/T)

A/T Housing Mainshaft Bearing Installation

Special Tools Required

- Driver Handle, 15 x 135L 07749-0010000
- Bearing Driver Attachment, 78 x 80 mm 07NAD-PX40100

1. Install the bearing (A) in the direction shown.

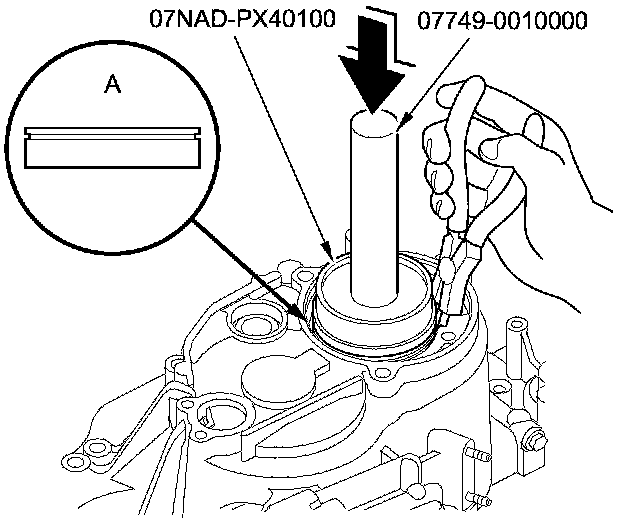

2. Expand the snap ring using snap ring pliers, and insert the bearing part-way into the transmission housing using the driver handle and the 78 x 80 mm attachment.

3. Release the snap ring pliers, then push the bearing down into transmission housing until the snap ring snaps in place around it.

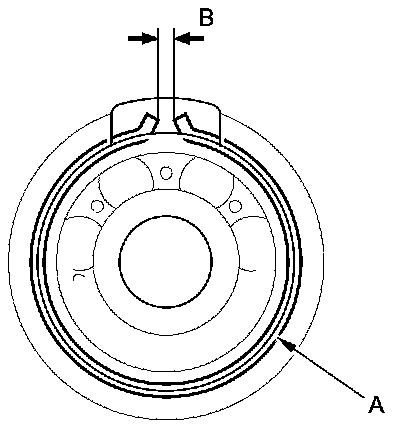

4. After installing the bearing, check that the snap ring (A) is seated in the bearing and housing groove, and that the snap ring end gap (B) is 0-7 mm (0-0.28 in).





5. Install the reverse idler gear assembly A/T Housing Reverse Idler Gear Removal/Installation (A/T).
