A/T Differential Carrier Bearing Outer Race Replacement

A/T Differential Carrier Bearing Outer Race Replacement

Special Tools Required

- Driver Handle, 15 x 135L 07749-0010000
- Attachment, 83 mm 07HAD-SG00100
- Attachment, 78 x 90 mm 07GAD-SD40101

NOTE:

- Replace the carrier bearing with a new one whenever the bearing outer race is replaced.
- Do not use the shim(s) from the toque converter housing side.
- Adjust the preload after replacing the bearing and the outer race.
- Coat all parts with ATF during installation.

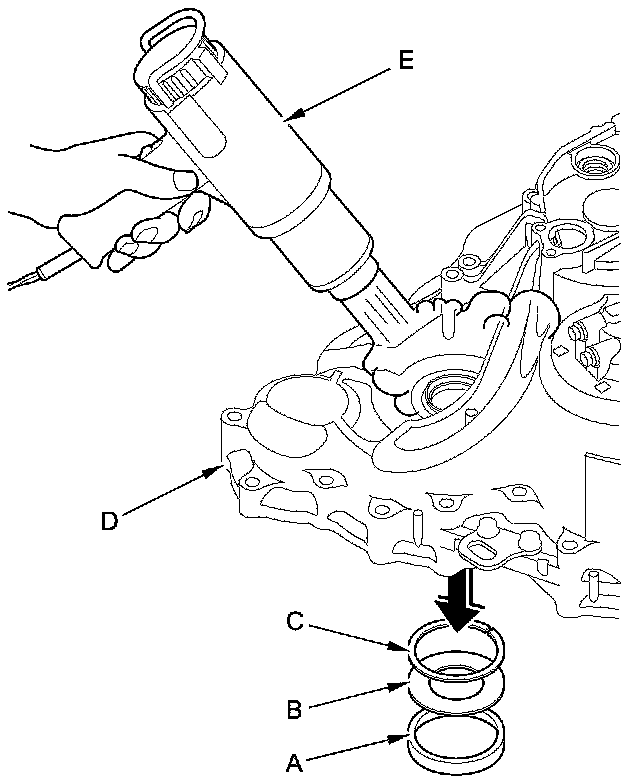

1. Remove the bearing outer race (A), the spacer (B), and the 85 mm thrust shim (C) from the transmission housing (D) by heating the transmission housing to about 212 °F (100 °C) using a heat gun (E). Do not heat the transmission housing more than 212 °F (100 °C).

NOTE: Let the transmission housing cool to room temperature before installing a new bearing outer race.

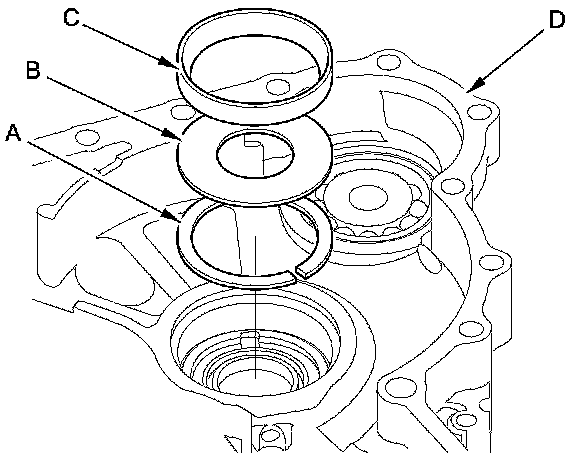

2. Install the 85 mm thrust shim (A), the spacer (B), and the bearing outer race (C) in the transmission housing (D).

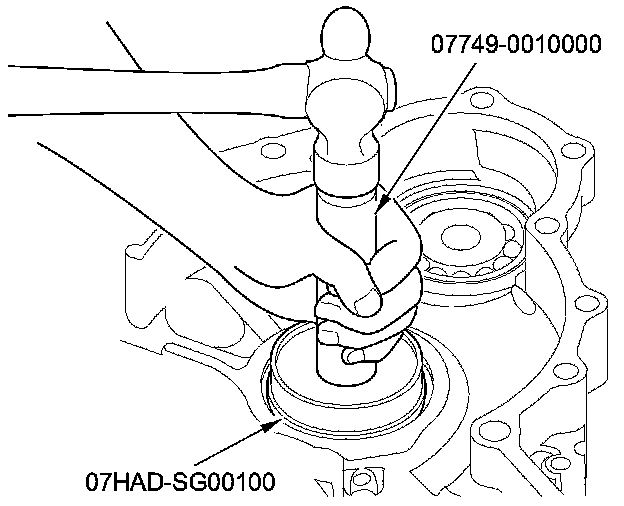

3. Using the driver handle and the 83 mm attachment, drive the bearing outer race securely into the transmission housing so there is no clearance between the bearing outer race, the spacer, the 85 mm thrust shim, and the transmission housing.

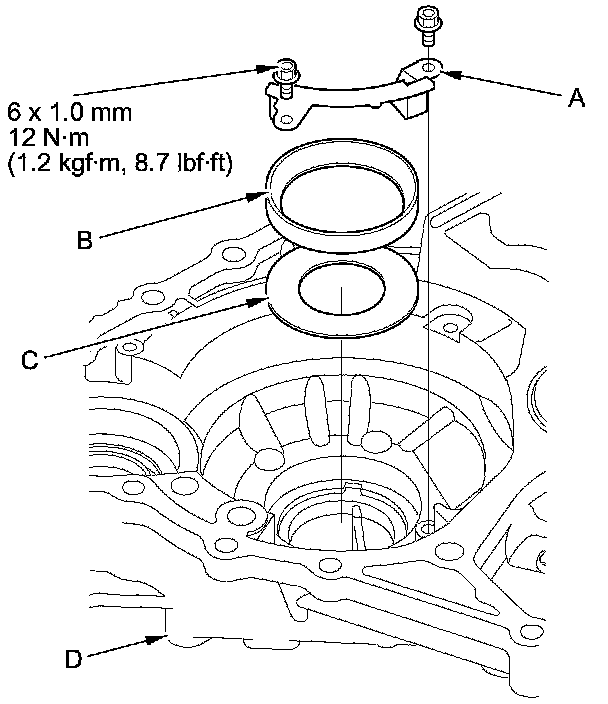

4. With SH-AWD: Remove the oil catch plate (A), and remove the bearing outer race (B) and the spacer (C) from the torque converter housing (D).

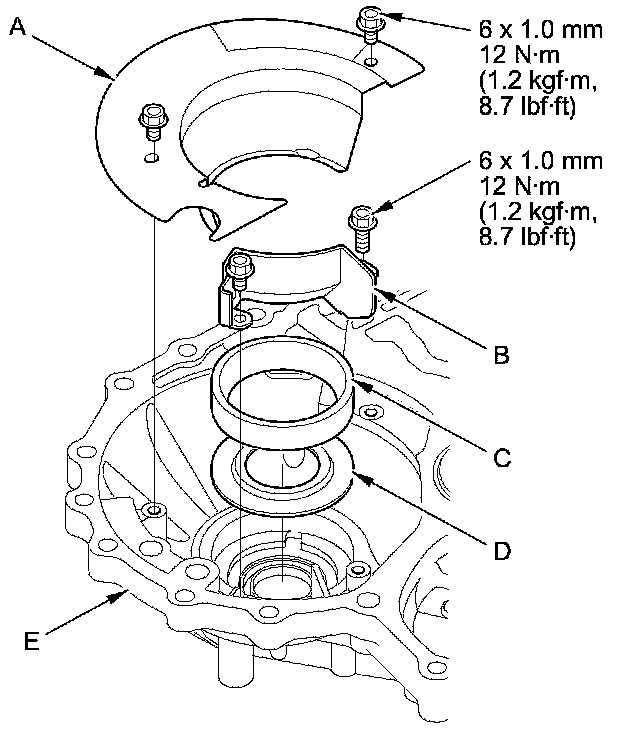

5. Without SH-AWD: Remove the baffle plate (A), the oil catch plate (B), and remove the bearing outer race (C) and the spacer (D) from the torque converter housing (E).





6. Install the spacer and a new bearing outer race in the torque converter housing.

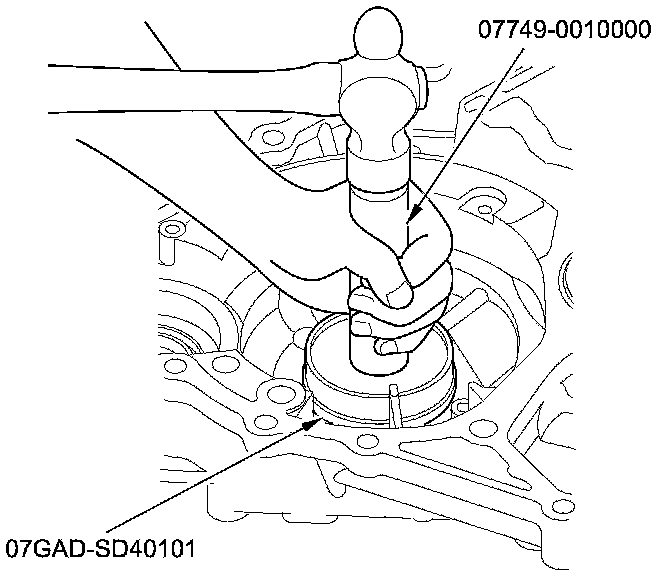

7. Drive the bearing outer race securely in the torque converter housing using the driver handle and the 78 x 90 mm attachment.





8. Install the oil catch plate and the baffle plate (without SH-AWD) over the bearing outer race in the torque converter housing.
