Multiplex Integrated Control System Component Location Index

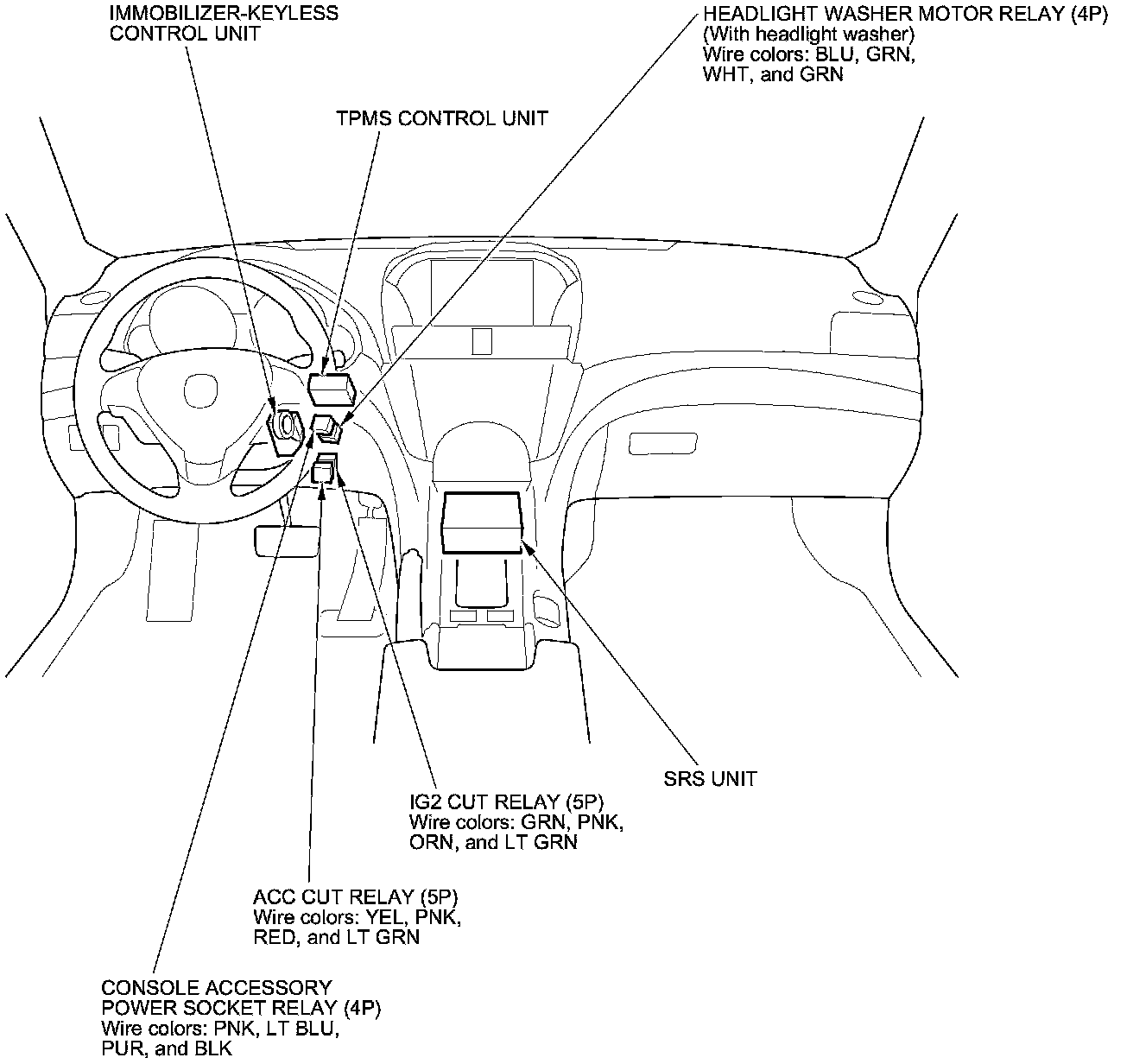

Relay and Control Unit Locations - Dashboard

Without Keyless Access System
