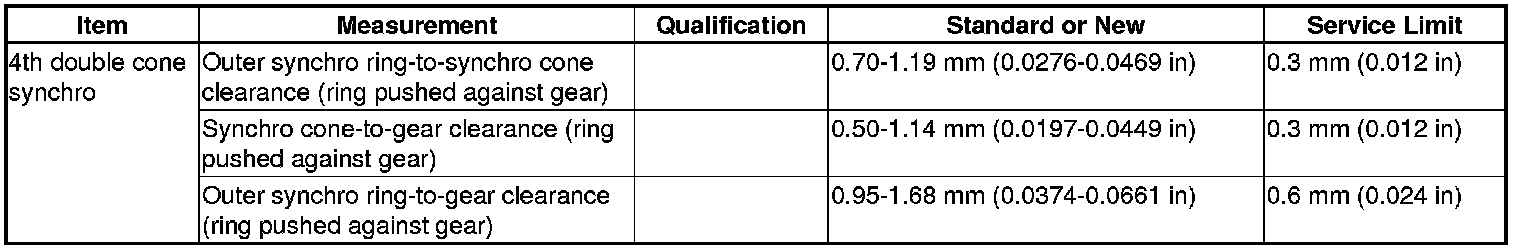

4th Double Cone Synchro Specification(s) (M/T)
4th Double Cone Synchro Specification(s) (M/T)
4th double cone synchro
4th double cone synchro
