Home >> Acura >> 2011 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Hazard Warning Switch >> Diagrams >> Hazard Warning Switch/Front Passenger's Airbag Cut-Off Indicator Connector View (USA, Canada)

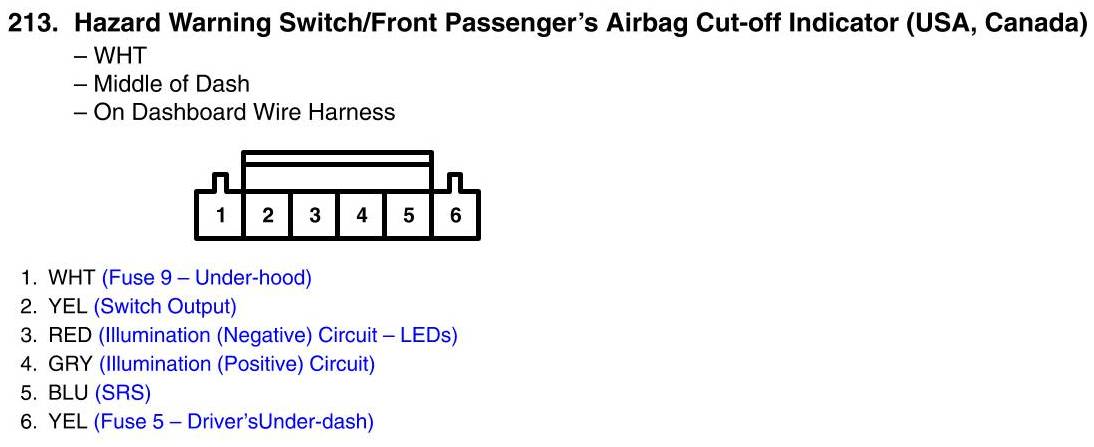

Hazard Warning Switch/Front Passenger's Airbag Cut-Off Indicator Connector View (USA, Canada)
