4th Clutch Transmission Fluid Pressure Switch Replacement

4th Clutch Transmission Fluid Pressure Switch Replacement

1. Do the battery removal procedure Removal and Replacement.

2. Remove the air cleaner housing Service and Repair.

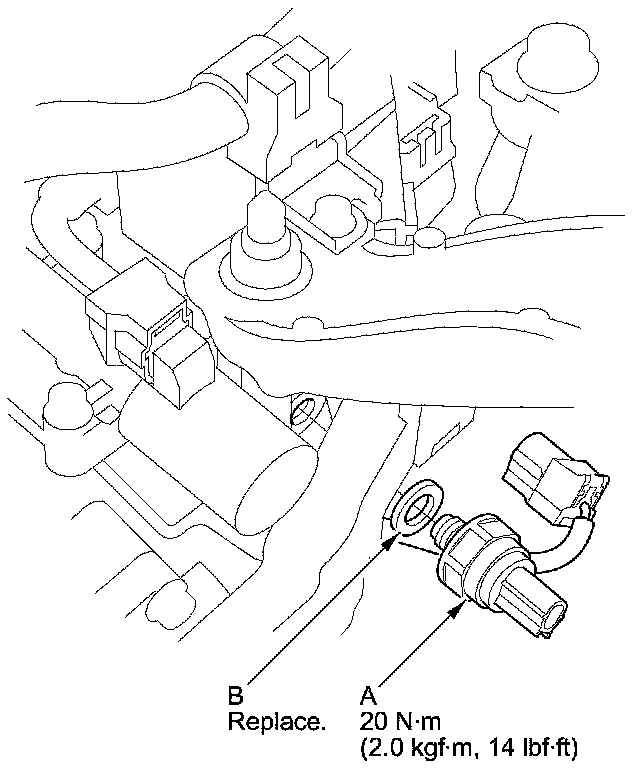

3. Disconnect the 4th clutch transmission fluid pressure switch connector, and remove the 4th clutch transmission fluid pressure switch (A).





4. Install a new 4th clutch transmission fluid pressure switch and a new sealing washer (B), and tighten the switch.

5. Check the connectors for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connectors securely.

6. Install the air cleaner housing Service and Repair.

7. Do the battery installation procedure Removal and Replacement.
