Accessory Relay: Diagrams

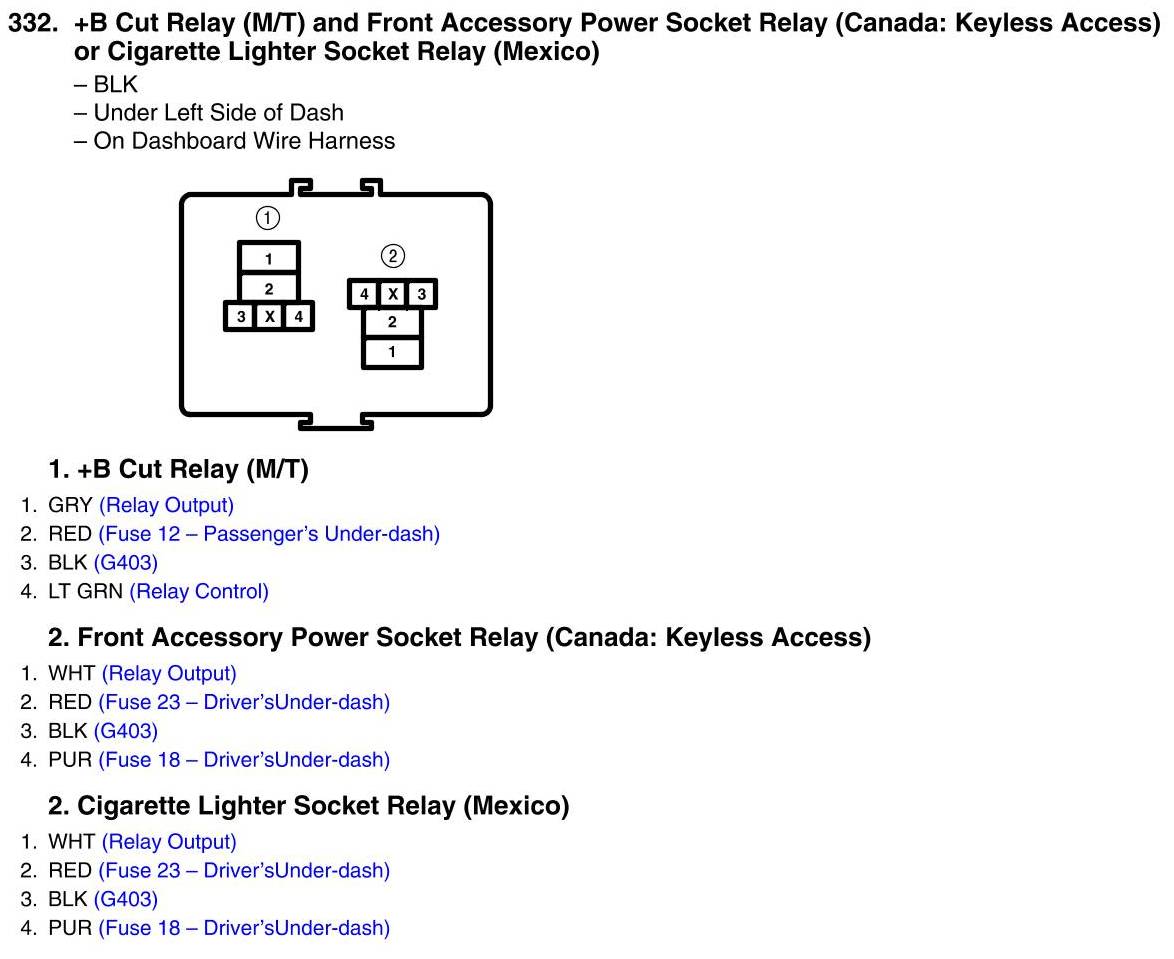

View 332 - +B Cut Relay (M/T) and Front Accessory Power Socket Relay (Canada: Keyless Access) Or Cigarette Lighter Socket Relay (Mexico) Connector View
