Cylinder Head Removal

Cylinder Head Removal

NOTE:

- Use fender covers to avoid damaging painted surfaces.
- To avoid damaging the wiring and terminals, unplug the wiring connectors carefully while holding the connector portion.
- Connect the Honda Diagnostic System (HDS) to the data link connector (DLC), and monitor the engine coolant temperature (ECT) sensor 1. To avoid damaging the cylinder head, wait until the ECT sensor 1 drops below 100 °F (38 °C) before loosening the cylinder head bolts.
- Mark all wiring and hoses to avoid misconnection. Also, be sure that they do not contact any other wiring or hoses, or interfere with any other parts.

1. Remove the engine compartment covers.

2. Relieve the fuel pressure.

3. Do the battery terminal disconnection procedure.

4. Drain the engine coolant.

5. Remove the alternator.

6. Remove the intake manifold.

7. Remove the six ignition coils.

8. Remove the timing belt.

9. Disconnect the following engine wire harness connectors, and remove the wire harness clamps from the cylinder head:

- Six injector connectors
- Knock sensor connector
- Engine coolant temperature (ECT) sensor 1 connector
- Engine mount control solenoid valve connector
- Camshaft position (CMP) sensor connector
- Rocker arm oil control solenoid connector
- Rocker arm oil pressure switch connector
- Two air fuel ratio (A/F) sensor connectors
- Two secondary heated oxygen sensor (secondary HO2S) connectors

10. Remove the front warm up three way catalytic converter (front WU-TWC) and the rear warm up three way catalytic converter (rear WU-TWC).

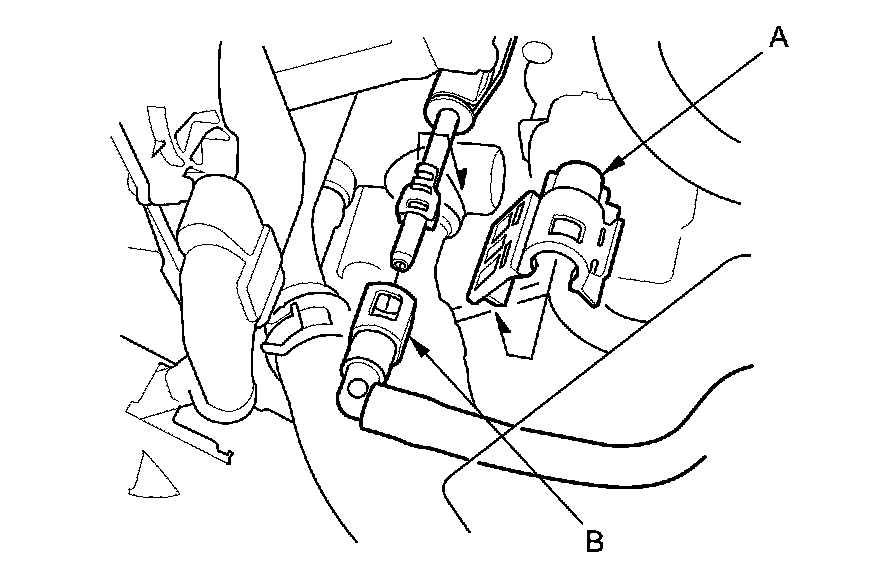

11. Remove the quick-connect fitting cover (A), then disconnect the fuel feed hose (B).

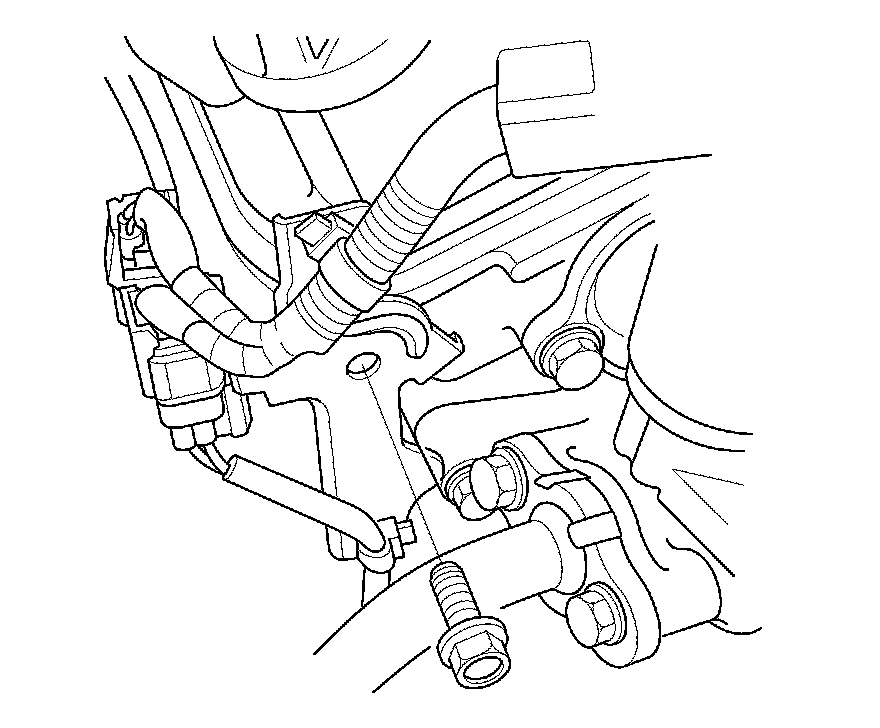

12. Remove the connector bracket from the front cylinder head.

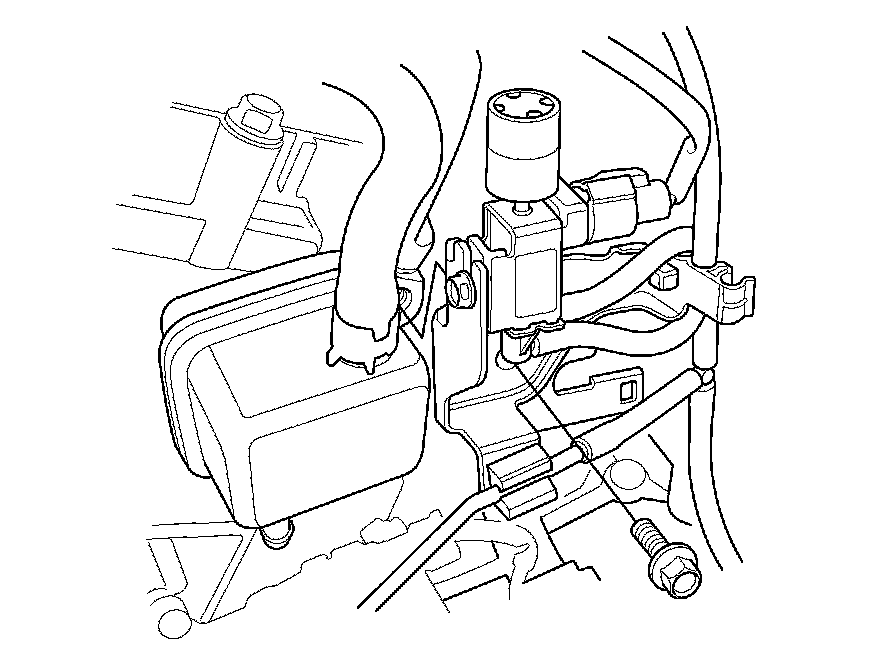

13. Remove the engine mount control solenoid valve bracket from the rear cylinder head.





14. Remove the evaporative emission (EVAP) canister joint with the bracket.

15. Remove the injector bases.

16. Remove the water passage.

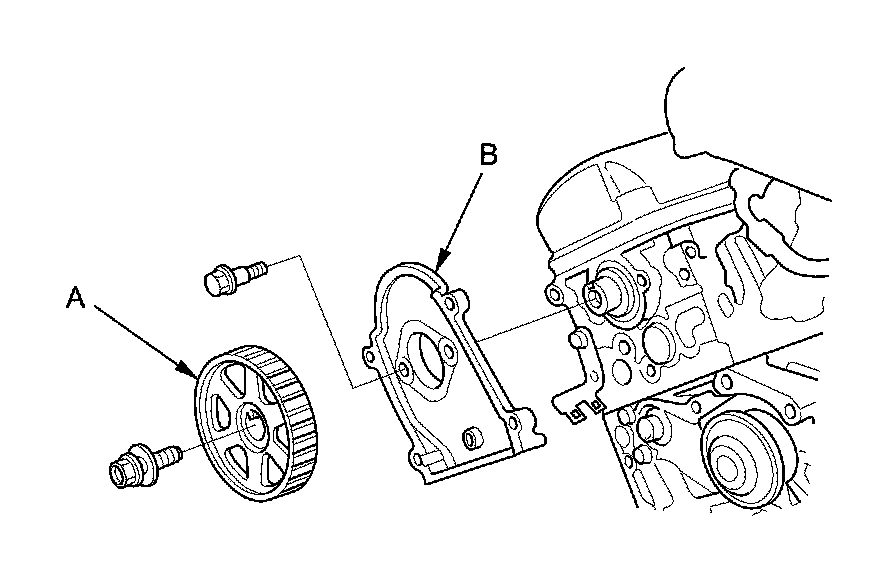

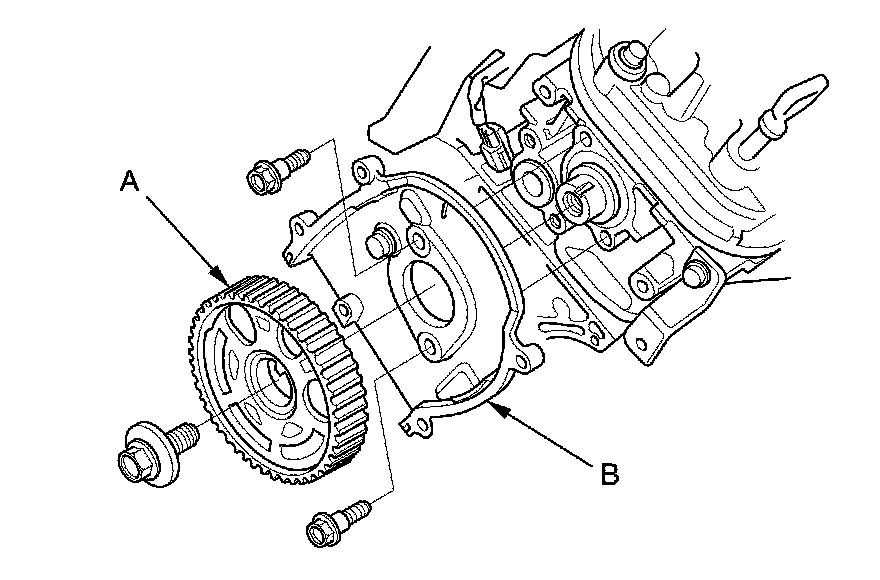

17. Remove the camshaft pulleys (A) and the back covers (B).









18. Remove the cylinder head covers.

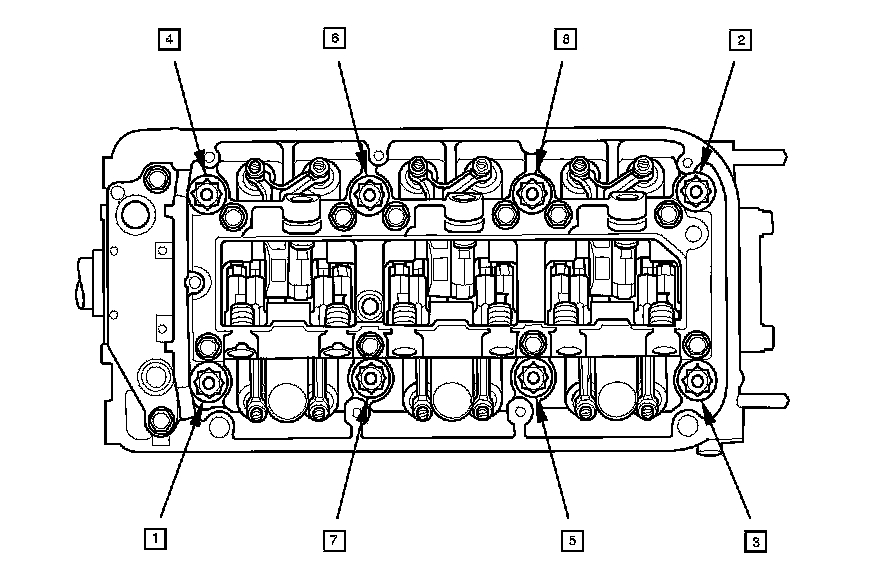

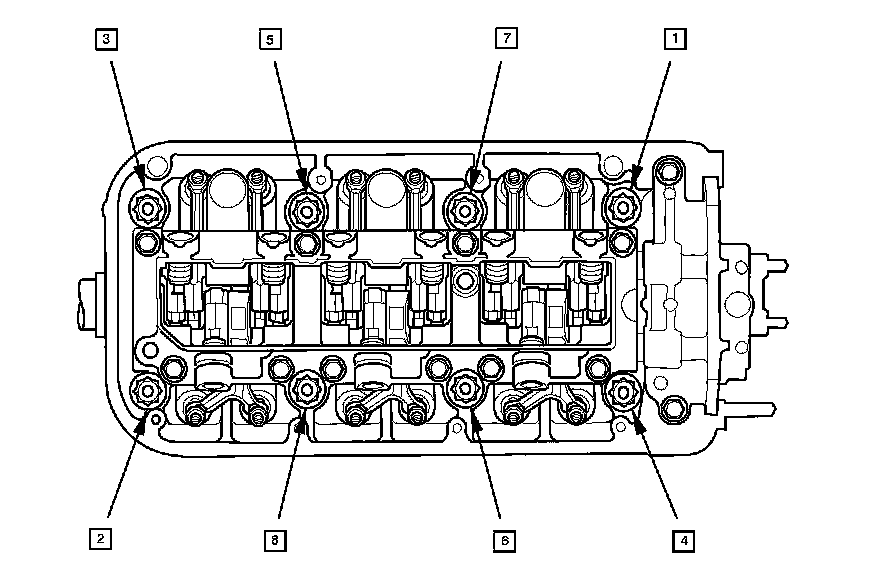

19. Remove the cylinder head bolts. To prevent warpage, loosen the bolts in sequence 1/3 turn at a time; repeat the sequence until all bolts are loosened.









20. Remove the cylinder heads.
