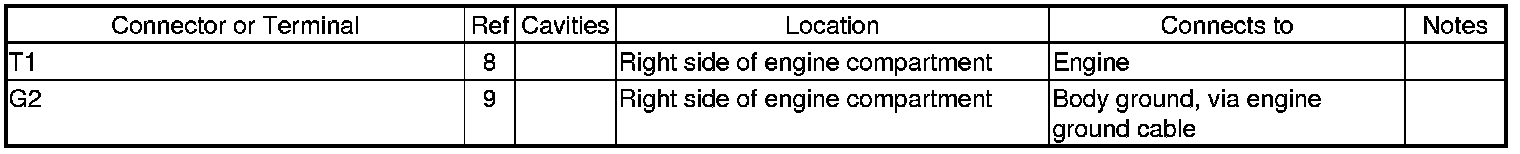

Engine Ground Cable




Connector and Harness Locations

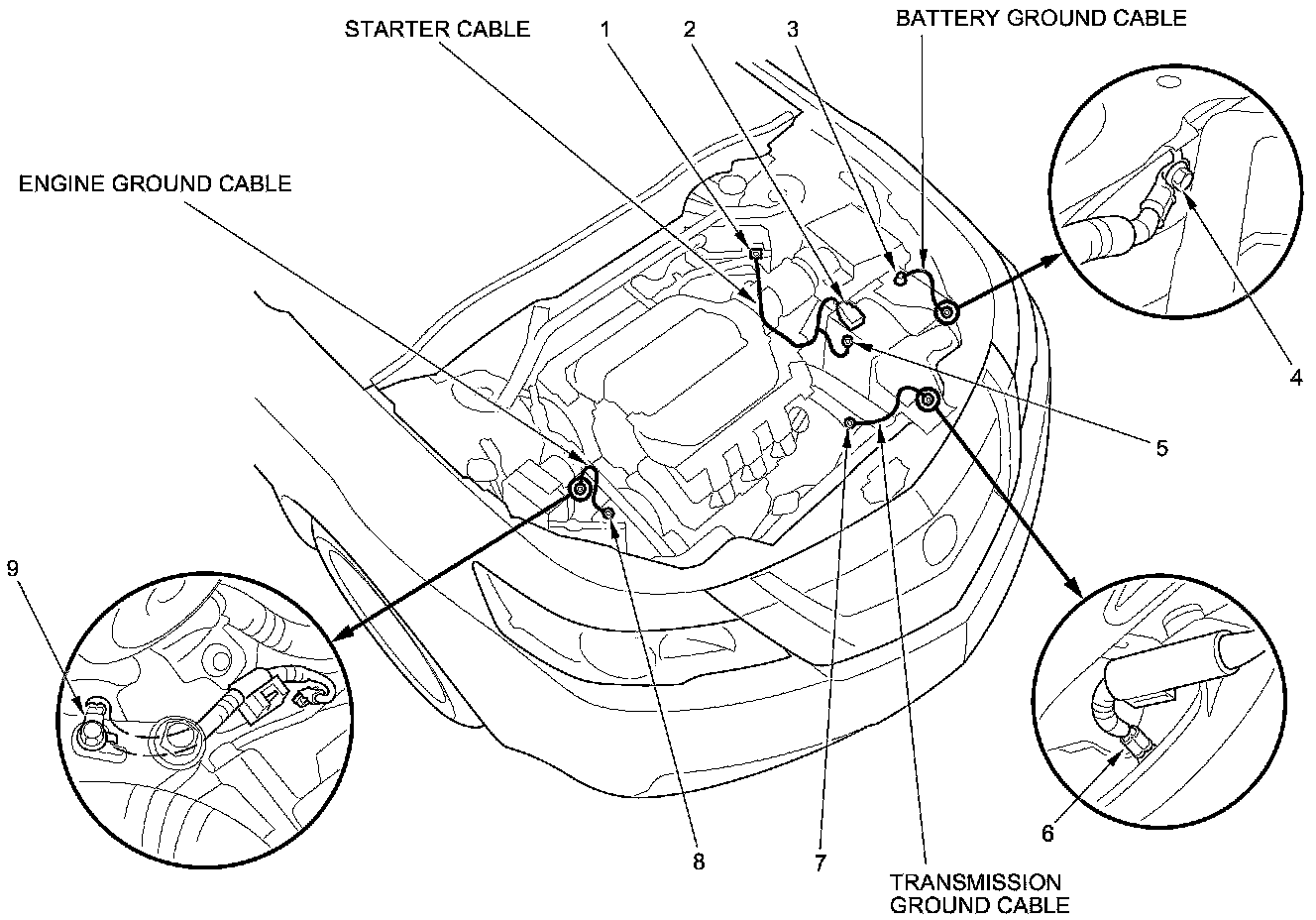

Engine Ground Cable (M/T)

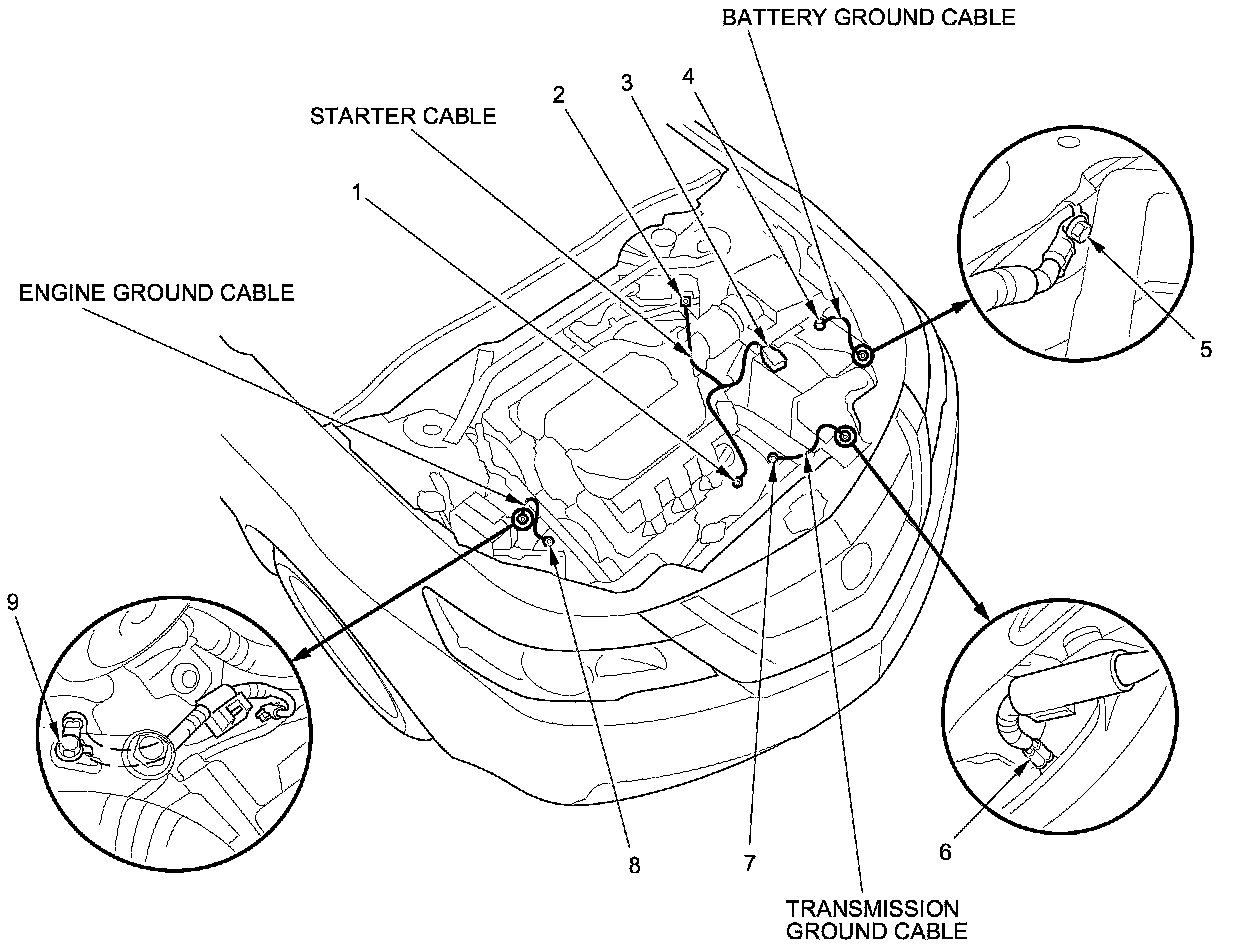

Engine Ground Cable (A/T)
