Right Side Wire Harness and Rear Window Defogger Ground Wire Connector and Harness Locations
>>

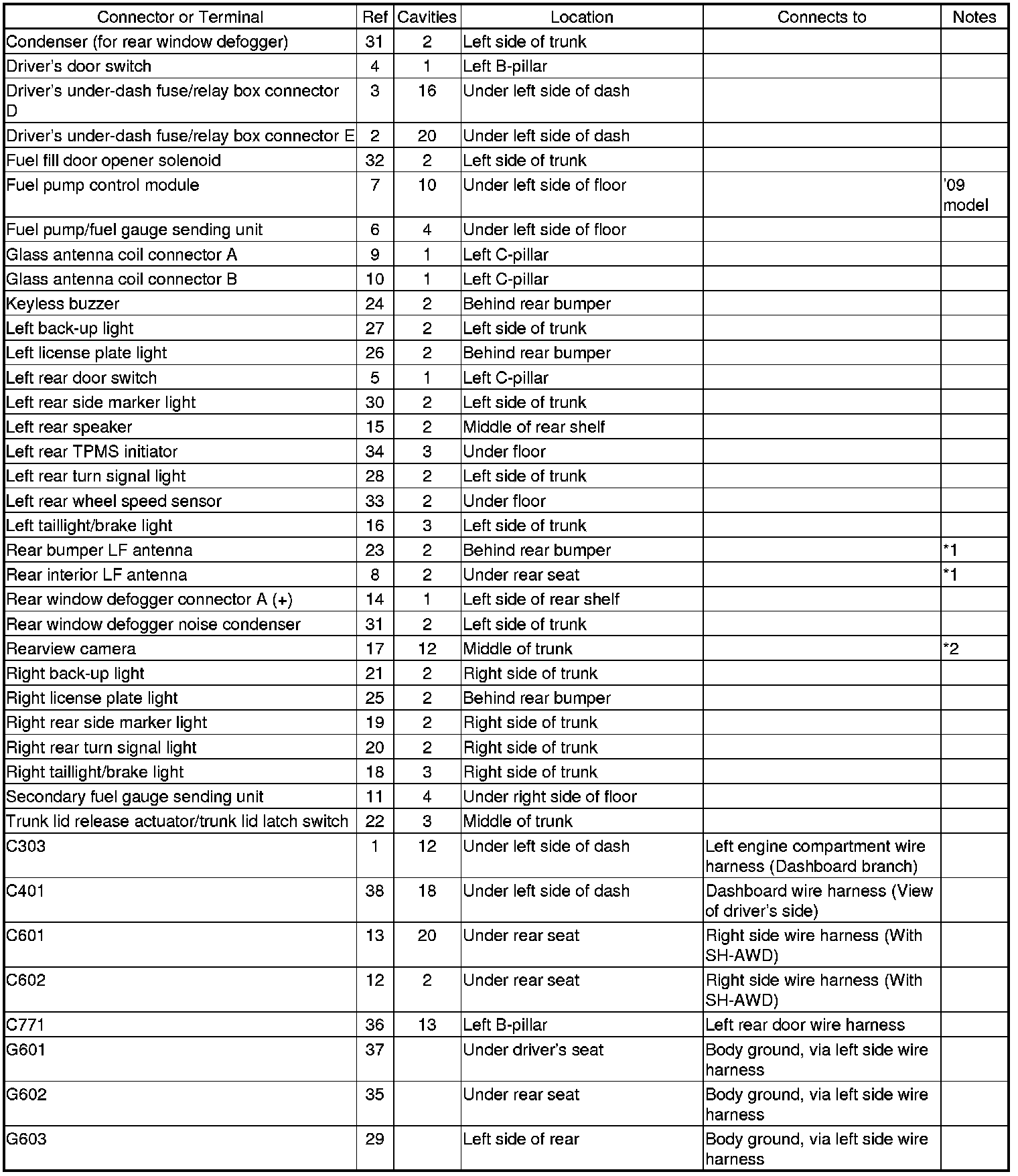

Connector or Terminal

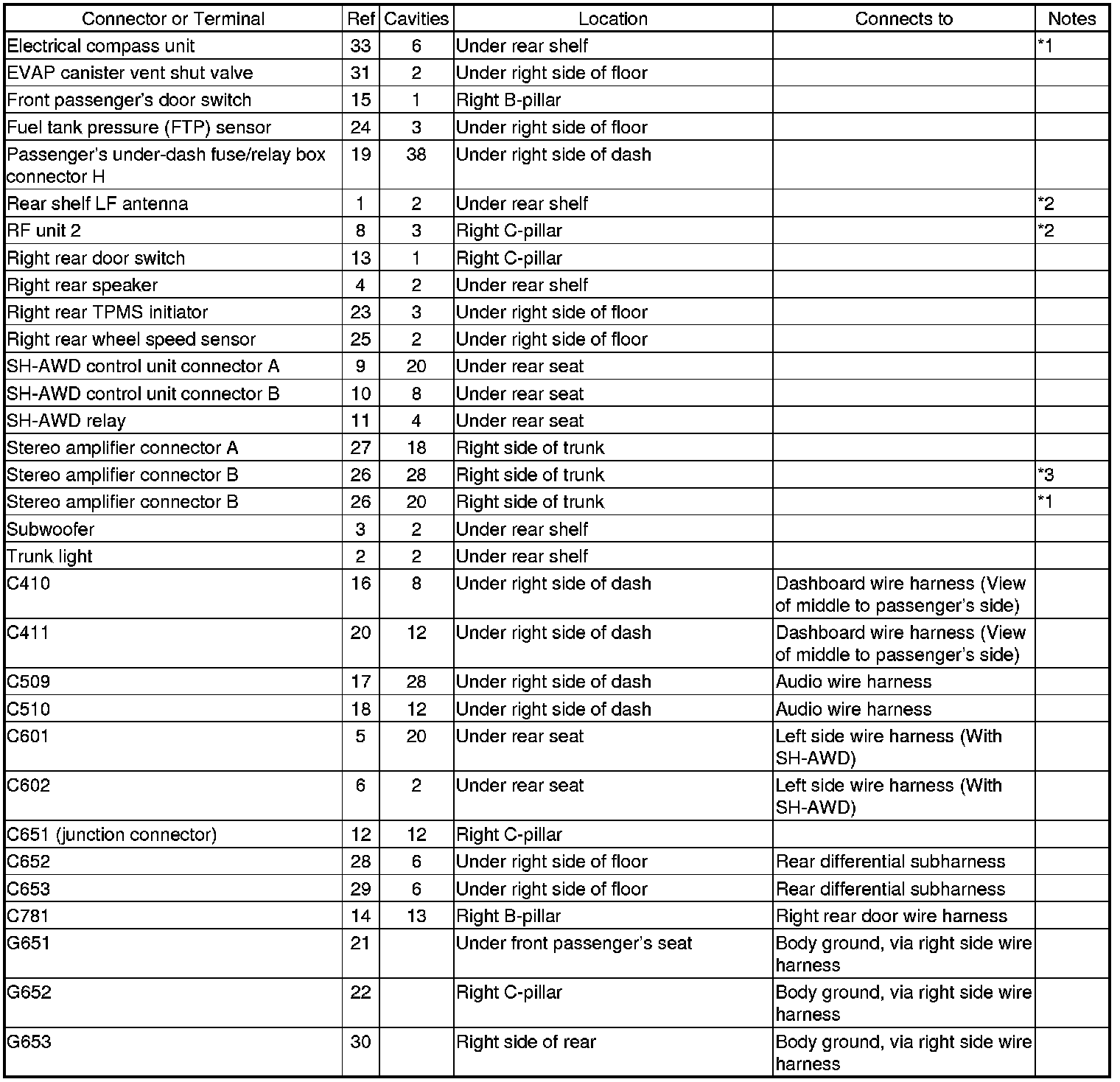

Connector or Terminal
Connector and Harness Locations

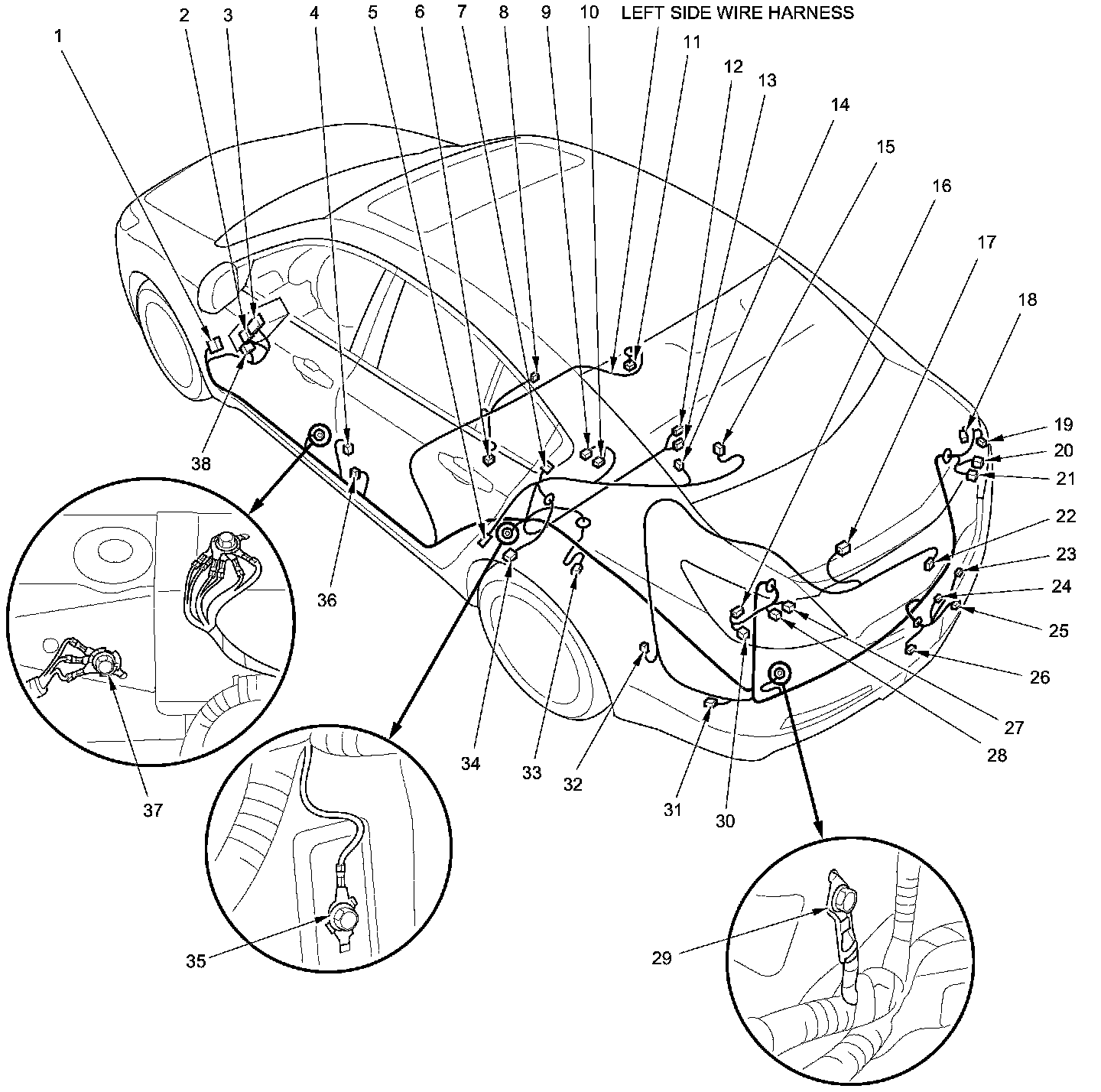

Left Side Wire Harness (With SH-AWD)

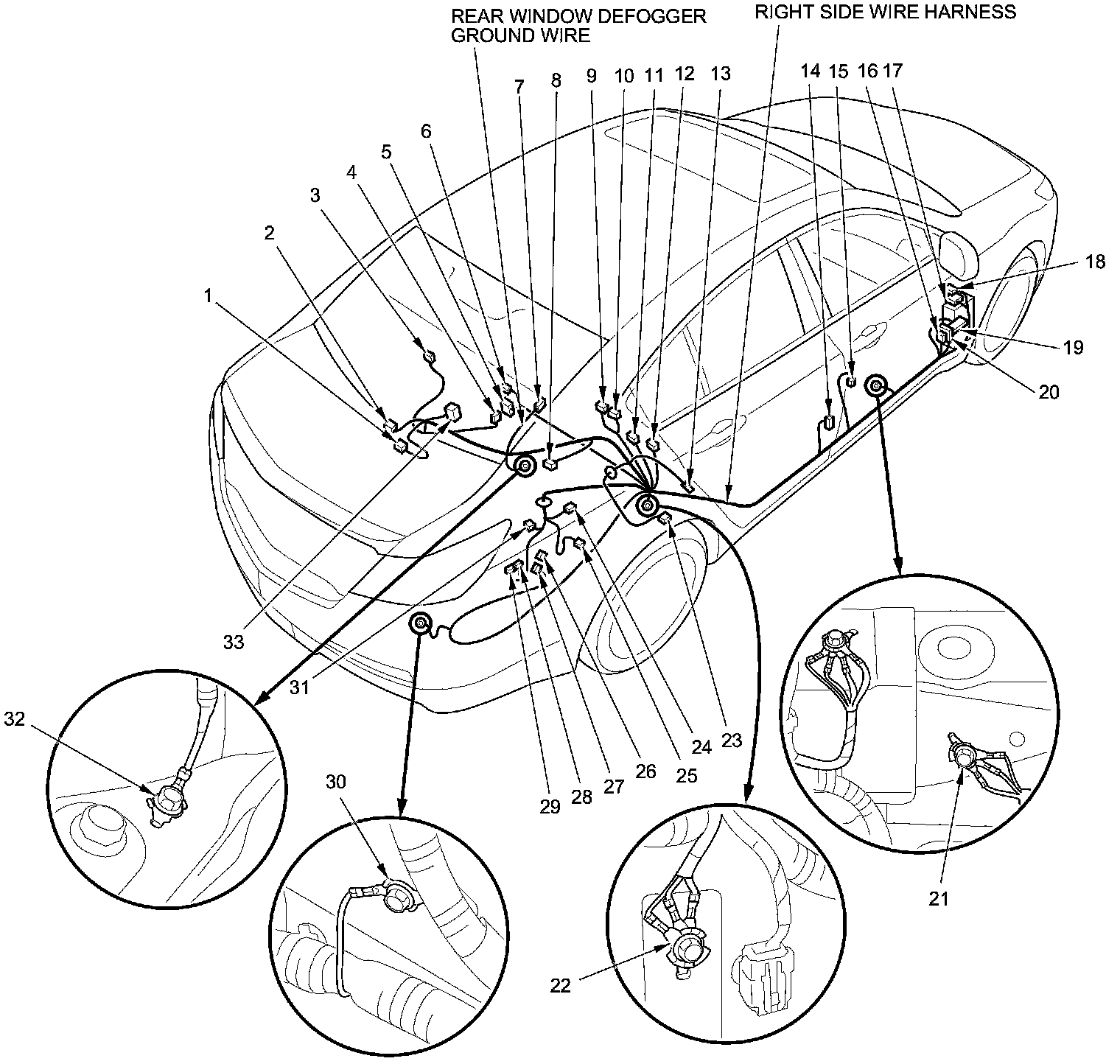

Right Side Wire Harness (With SH-AWD)
