Connector or Terminal




Connector and Harness Locations

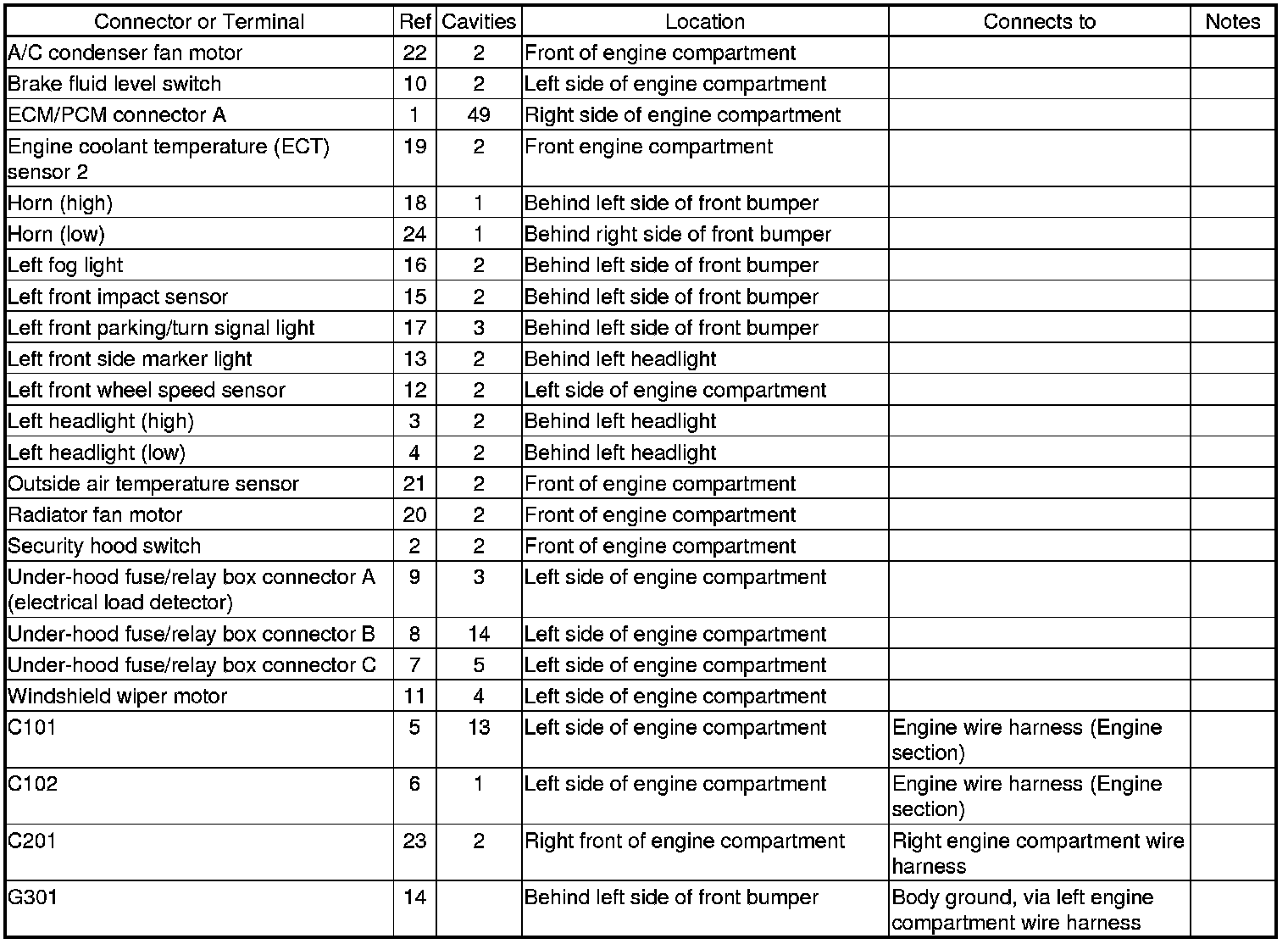

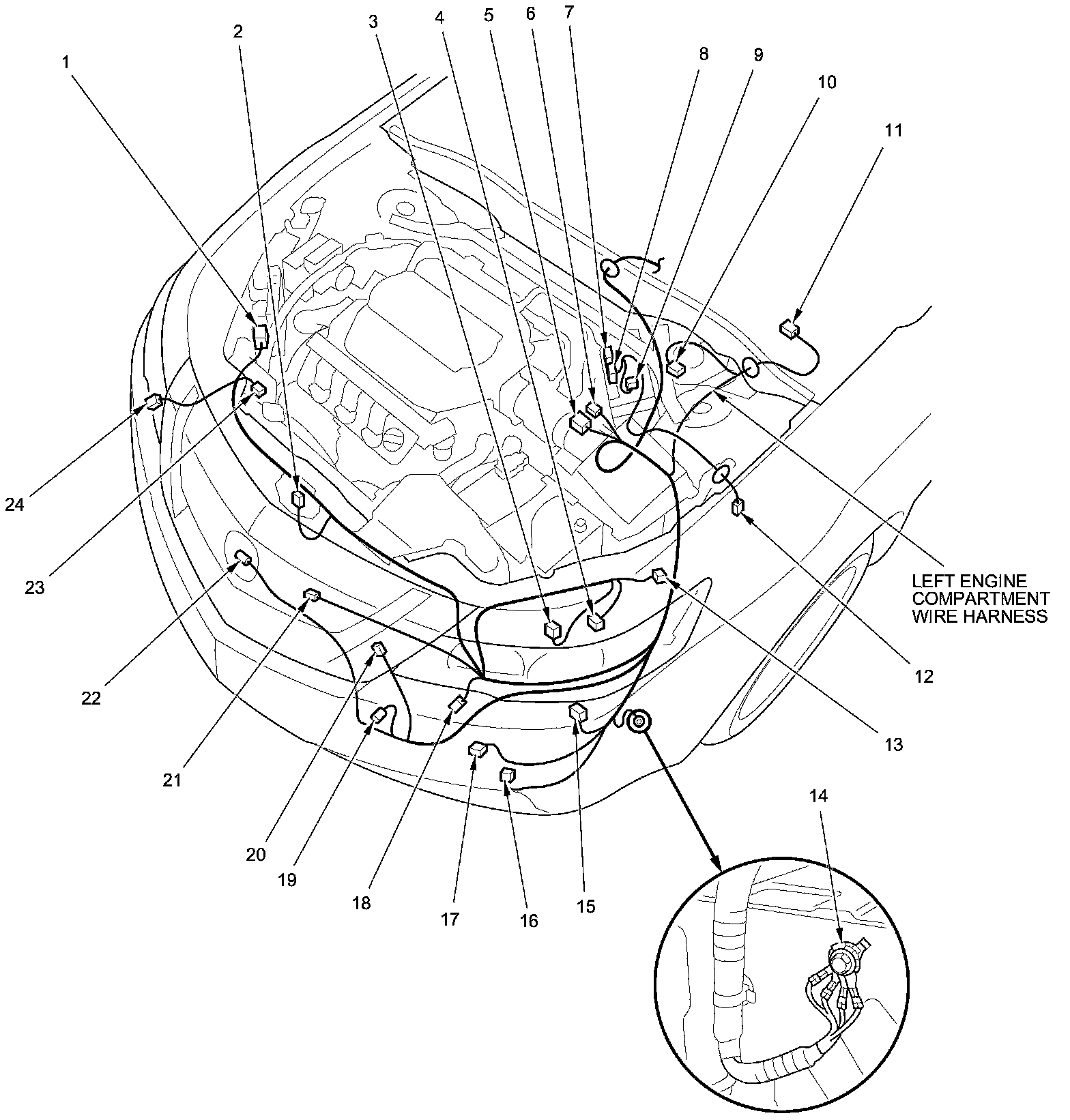

Left Engine Compartment Wire Harness (Engine Compartment Branch)

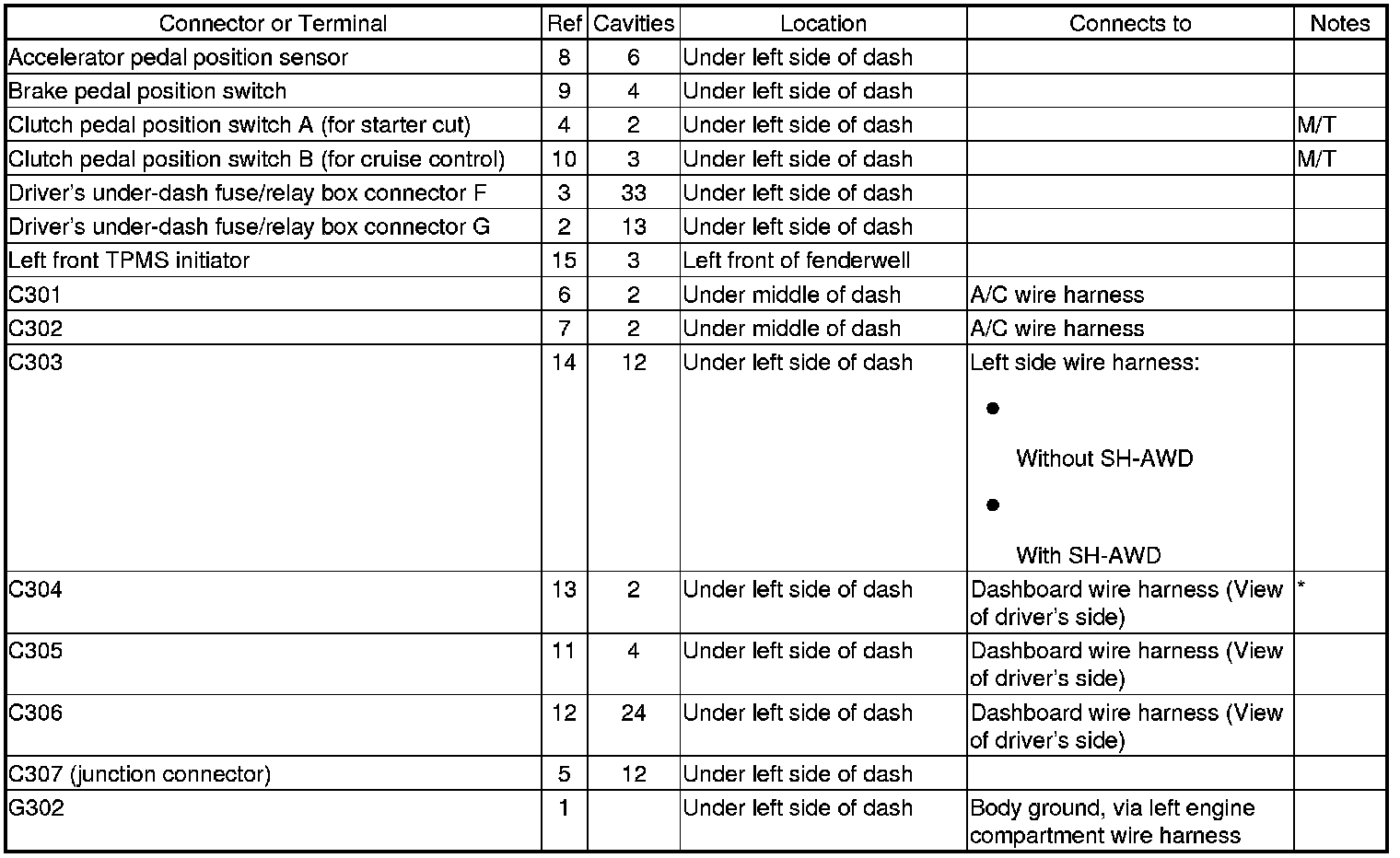

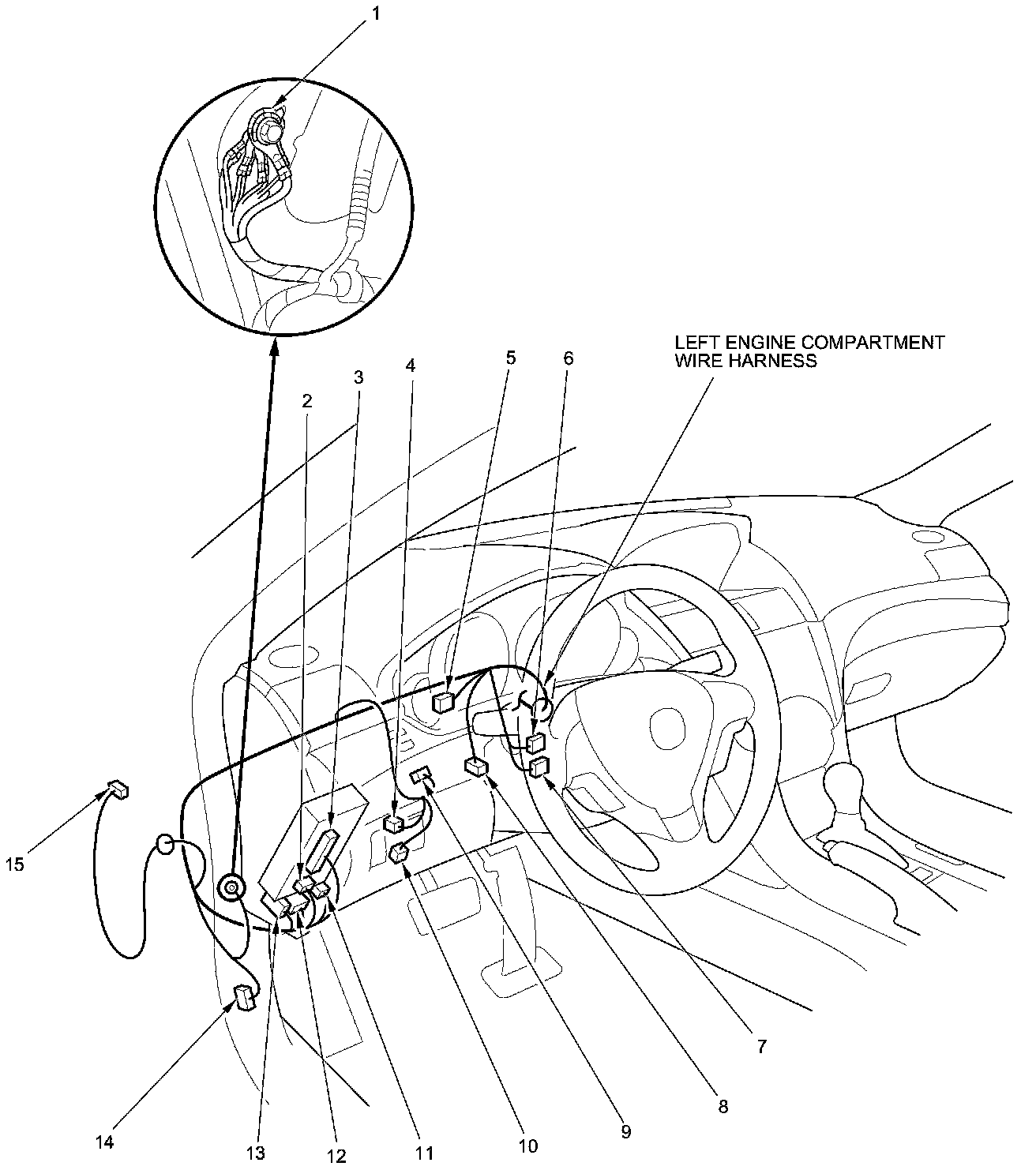

Left Engine Compartment Wire Harness (Dashboard Branch)

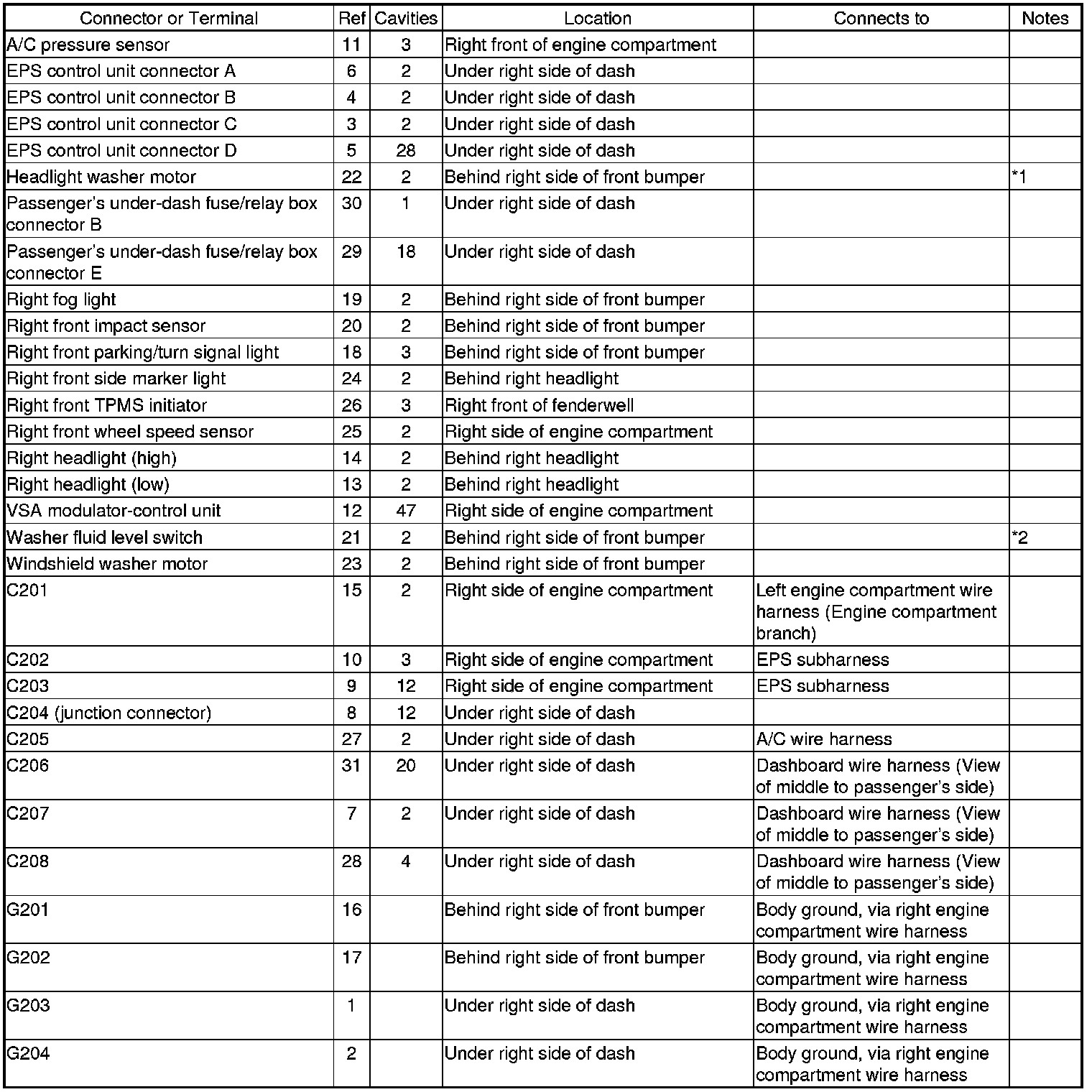

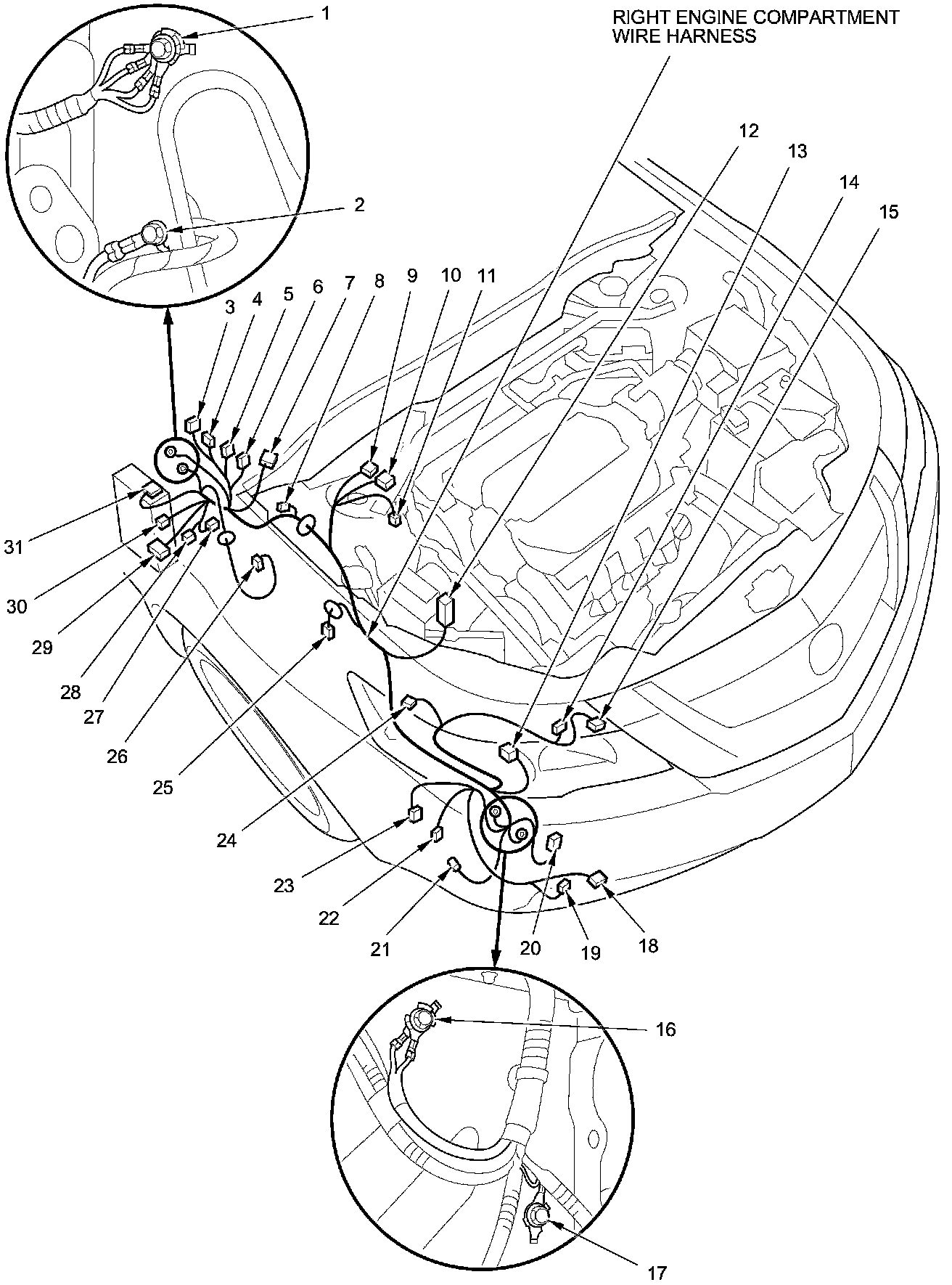

Right Engine Compartment Wire Harness
