Home >> Acura >> 2011 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Harness >> Engine Wire Harness (Engine Section) And Knock Sensor Subharness Connector And Harness Locations >> Connector to Harnesses (M/T)

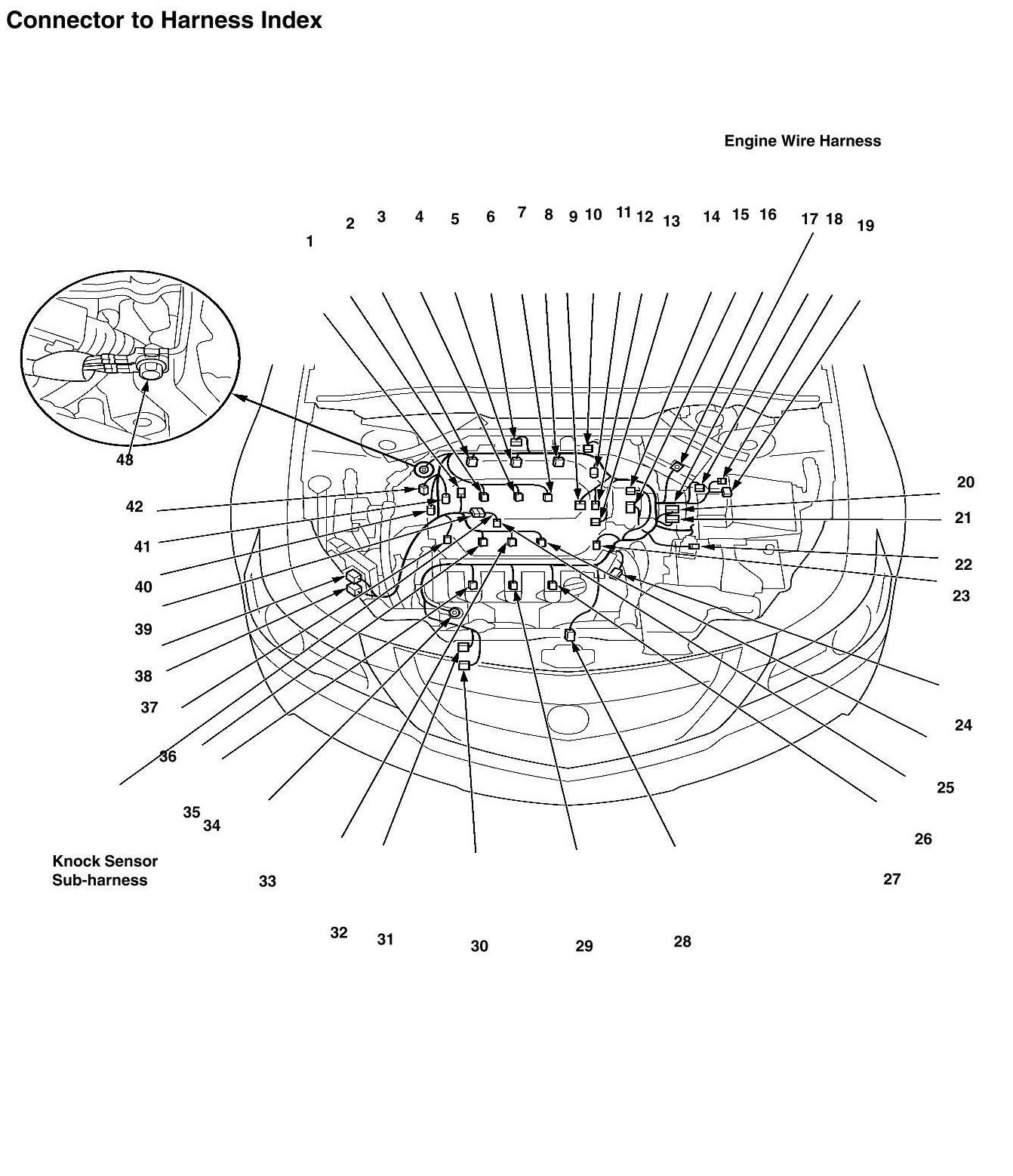

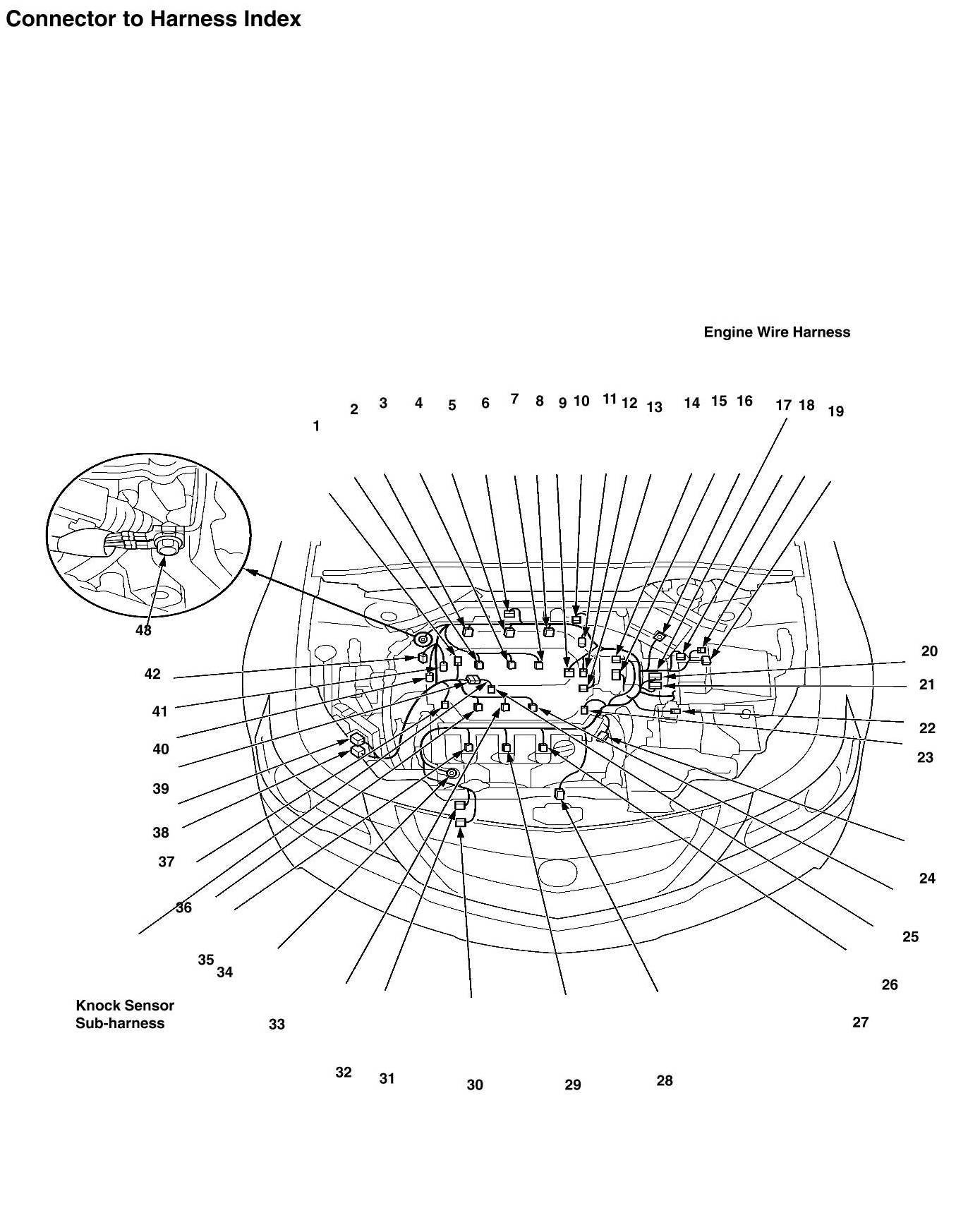

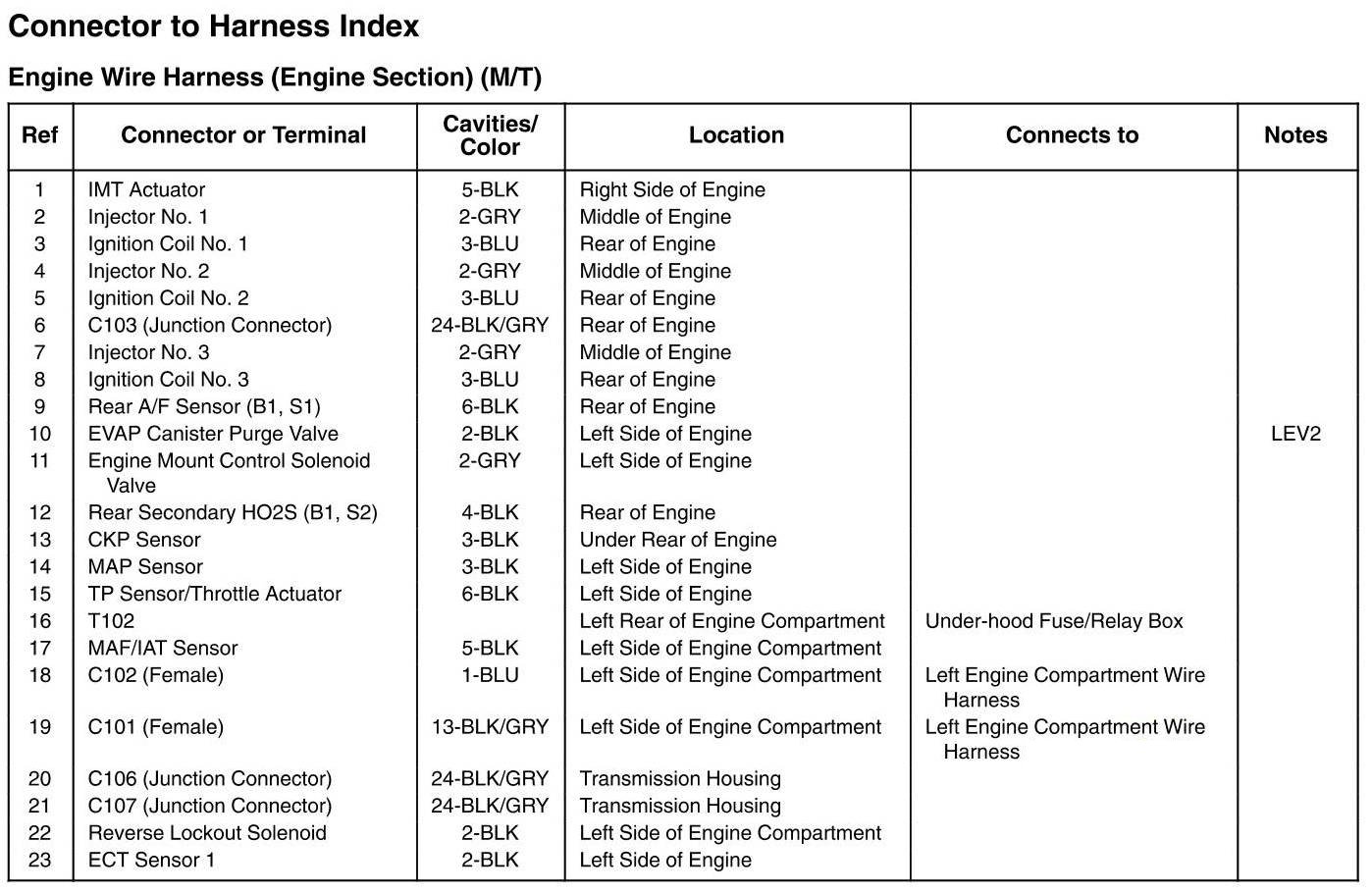

Connector to Harnesses (M/T)
