Home >> Acura >> 2011 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Harness >> Engine Wire Harness (Engine Section) And Knock Sensor Subharness Connector And Harness Locations >> Connector or Terminal >> Knock Sensor Subharness

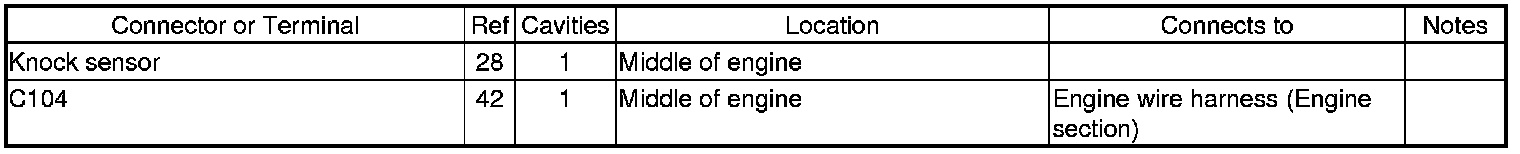

Knock Sensor Subharness




Connector and Harness Locations

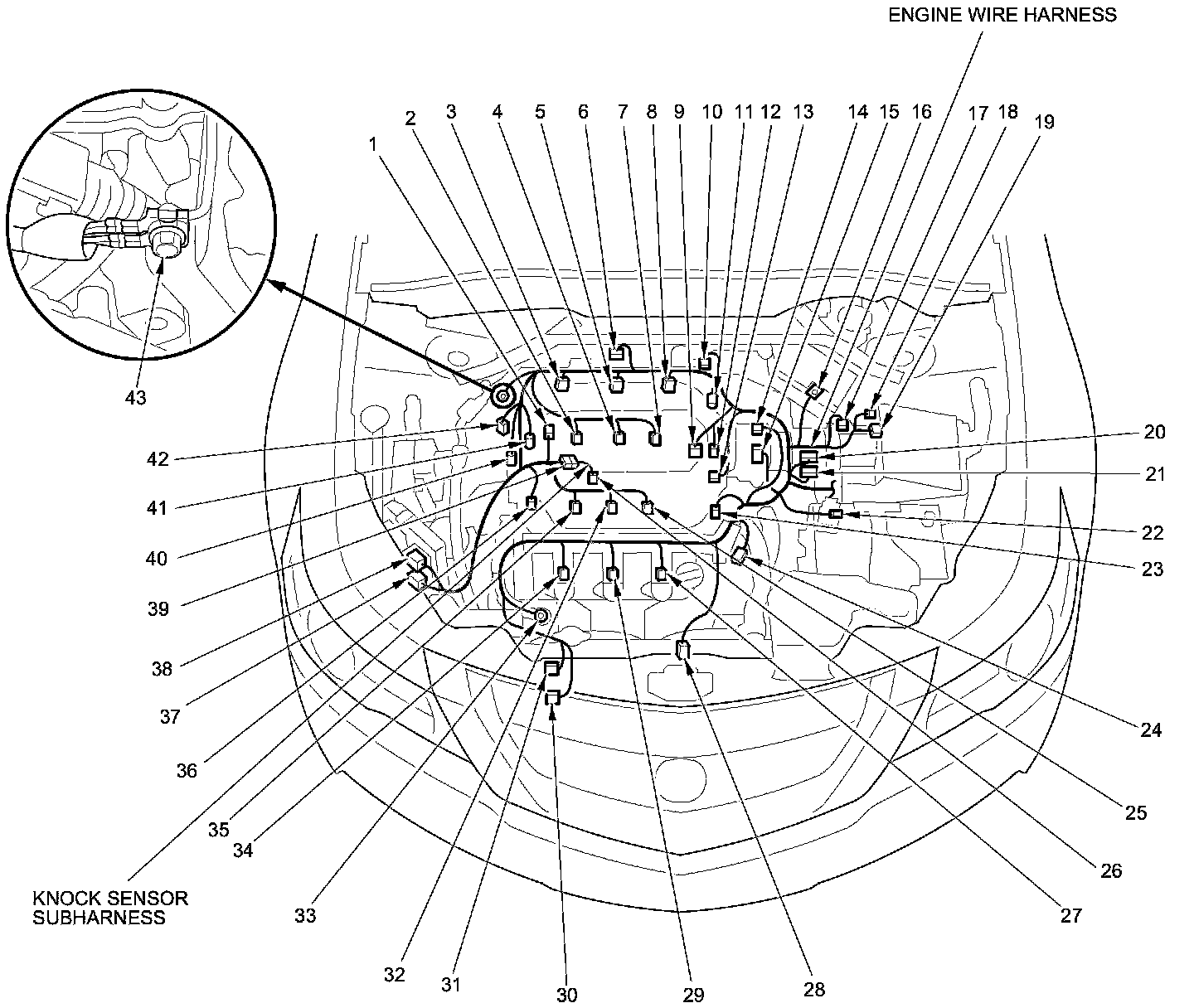

Knock Sensor Subharness (M/T)

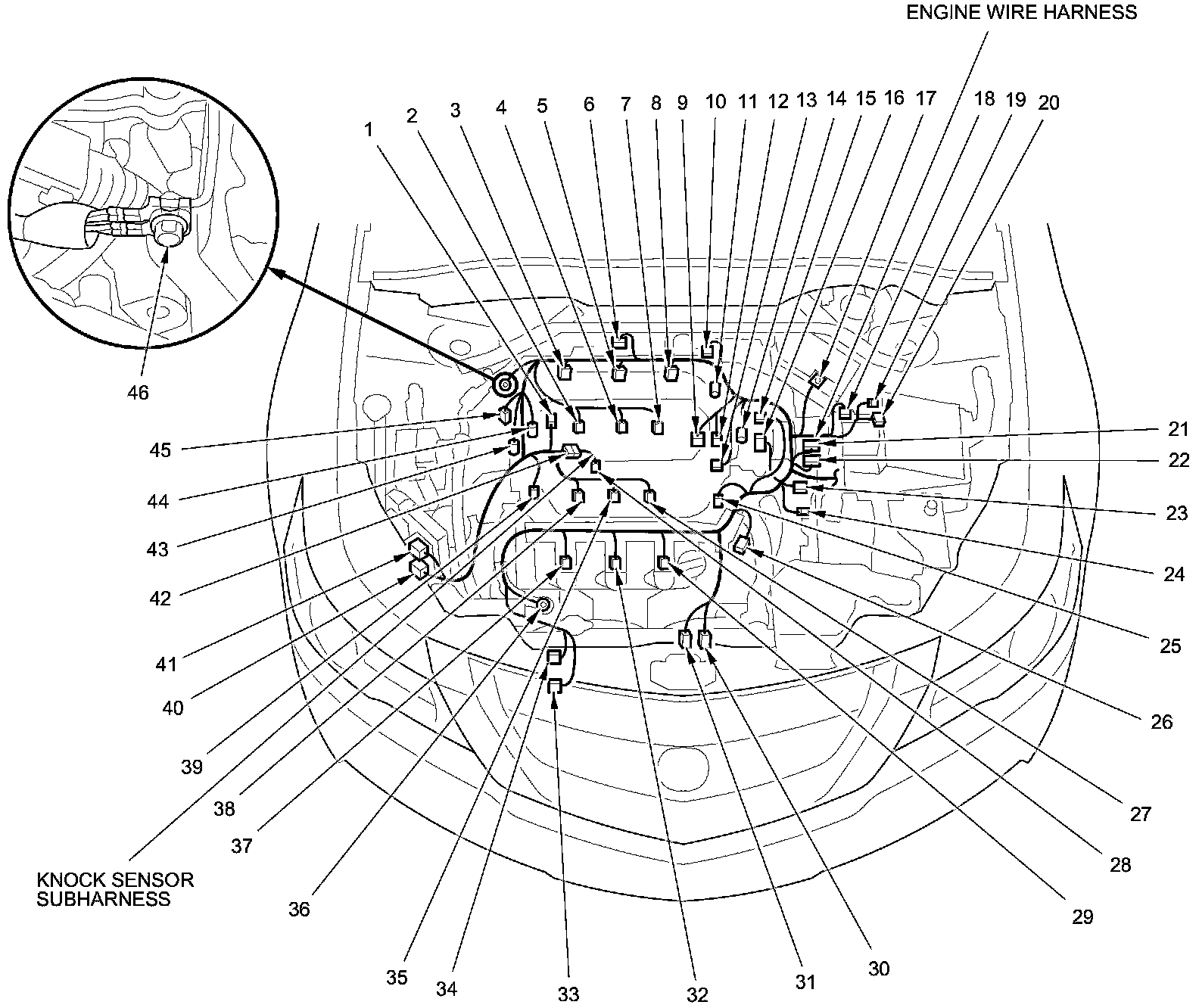

Knock Sensor Subharness (A/T)
