Home >> Acura >> 2011 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 53 - EVAP Canister Purge Valve Connector View (LEV2)

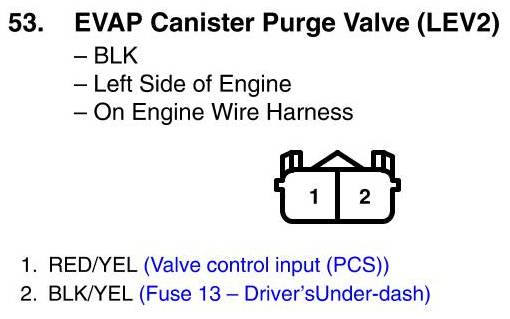

View 53 - EVAP Canister Purge Valve Connector View (LEV2)
