Home >> Acura >> 2011 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 365 - Remote Starting Control Unit Connector View (Remote Starting System (Acura Accessory))

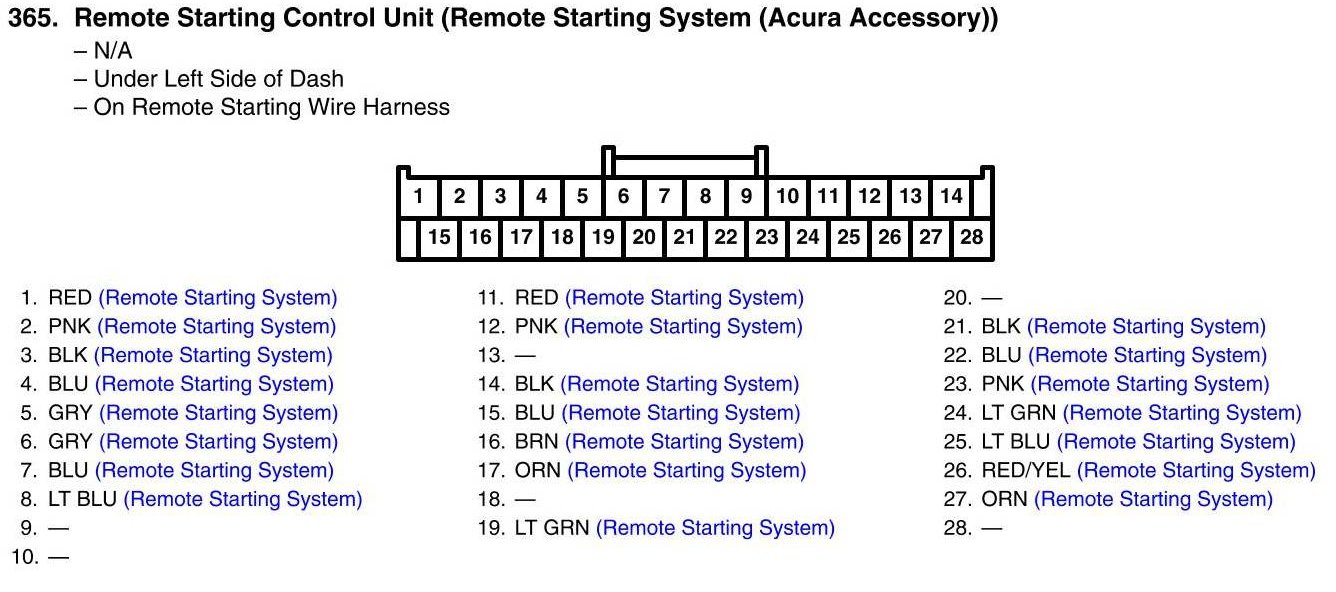

View 365 - Remote Starting Control Unit Connector View (Remote Starting System (Acura Accessory))
