Home
>>
Acura
>>
2011
>>
TL AWD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

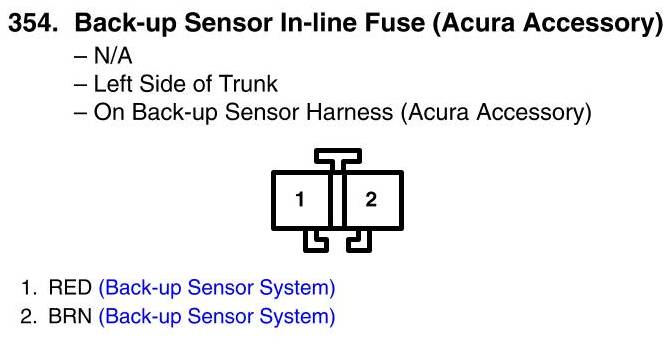

View 354 - Back-Up Sensor In-Line Fuse Connector View (Acura Accessory)
View 354 - Back-Up Sensor In-Line Fuse Connector View (Acura Accessory)
