Home >> Acura >> 2011 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 267 - C651 (Junction Connector) Connector View (SH-AWD)

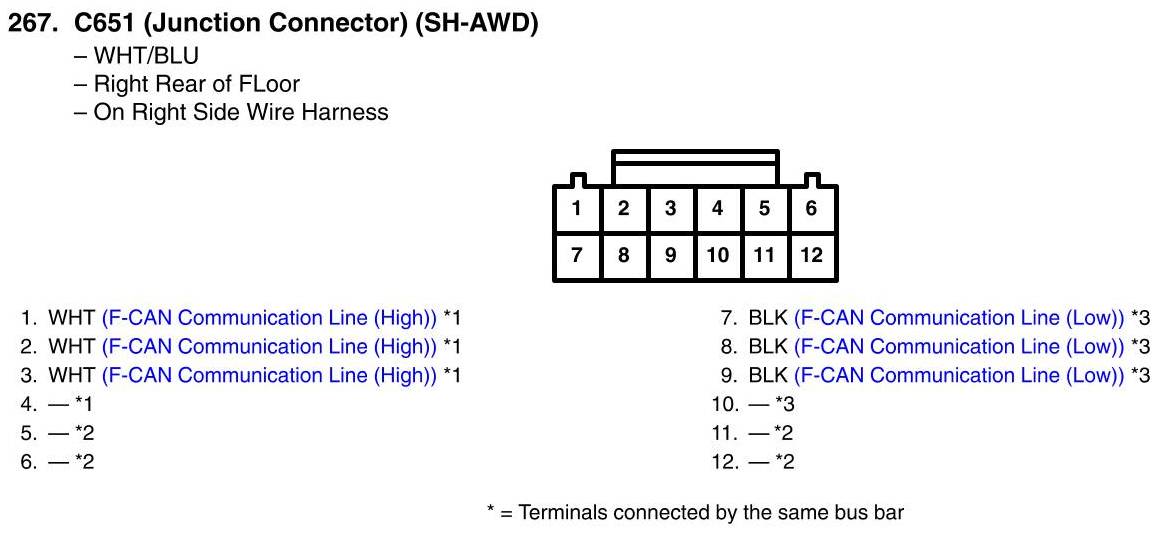

View 267 - C651 (Junction Connector) Connector View (SH-AWD)
