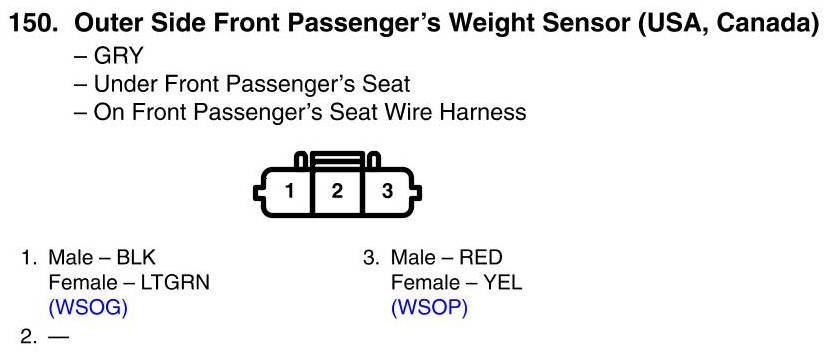

View 150 - Outer Side Front Passenger's Weight Sensor Connector View (USA, Canada)
View 150 - Outer Side Front Passenger's Weight Sensor Connector View (USA, Canada)
