Sound Proofing / Insulation: Service and Repair
Floor Insulators

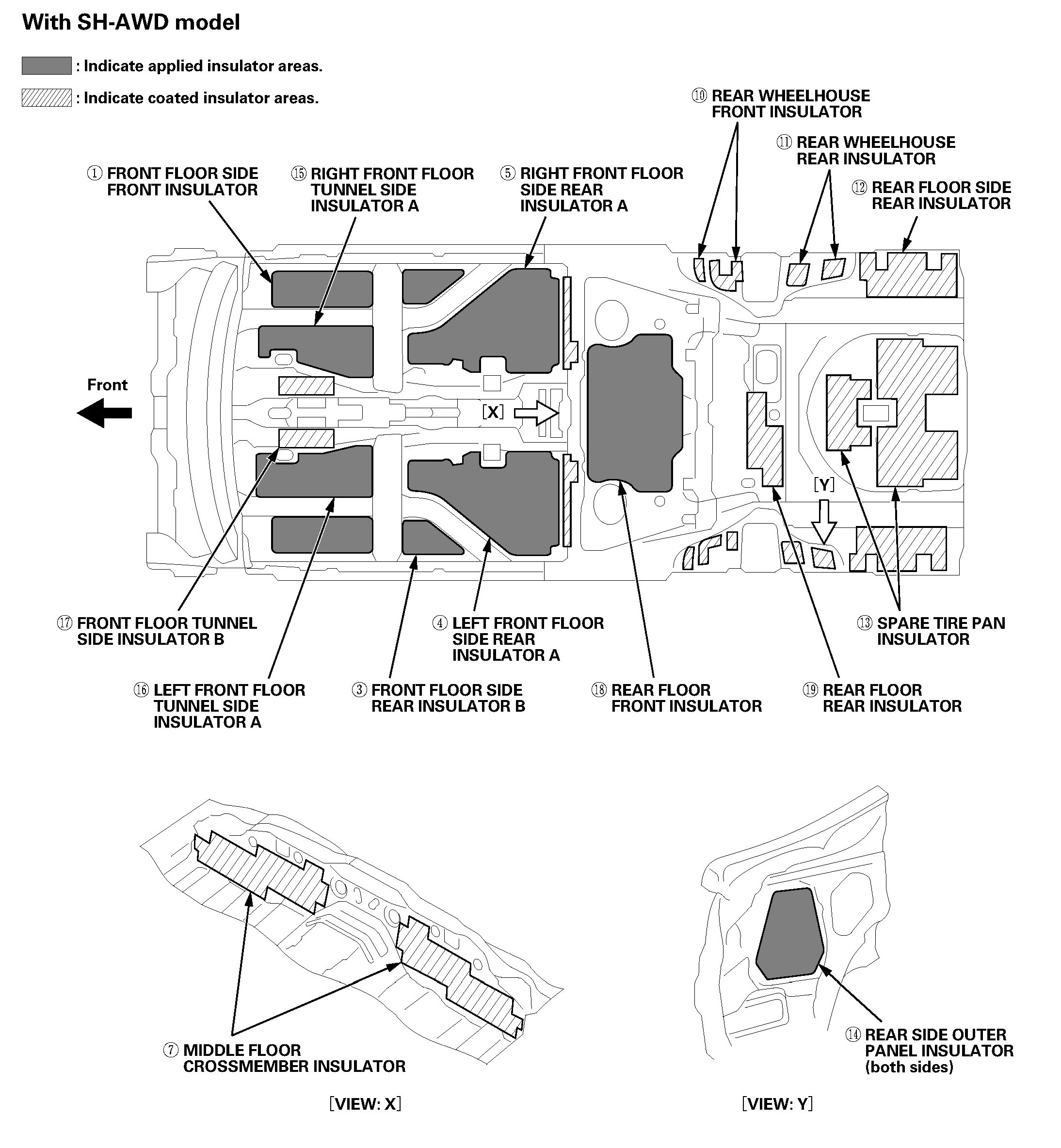

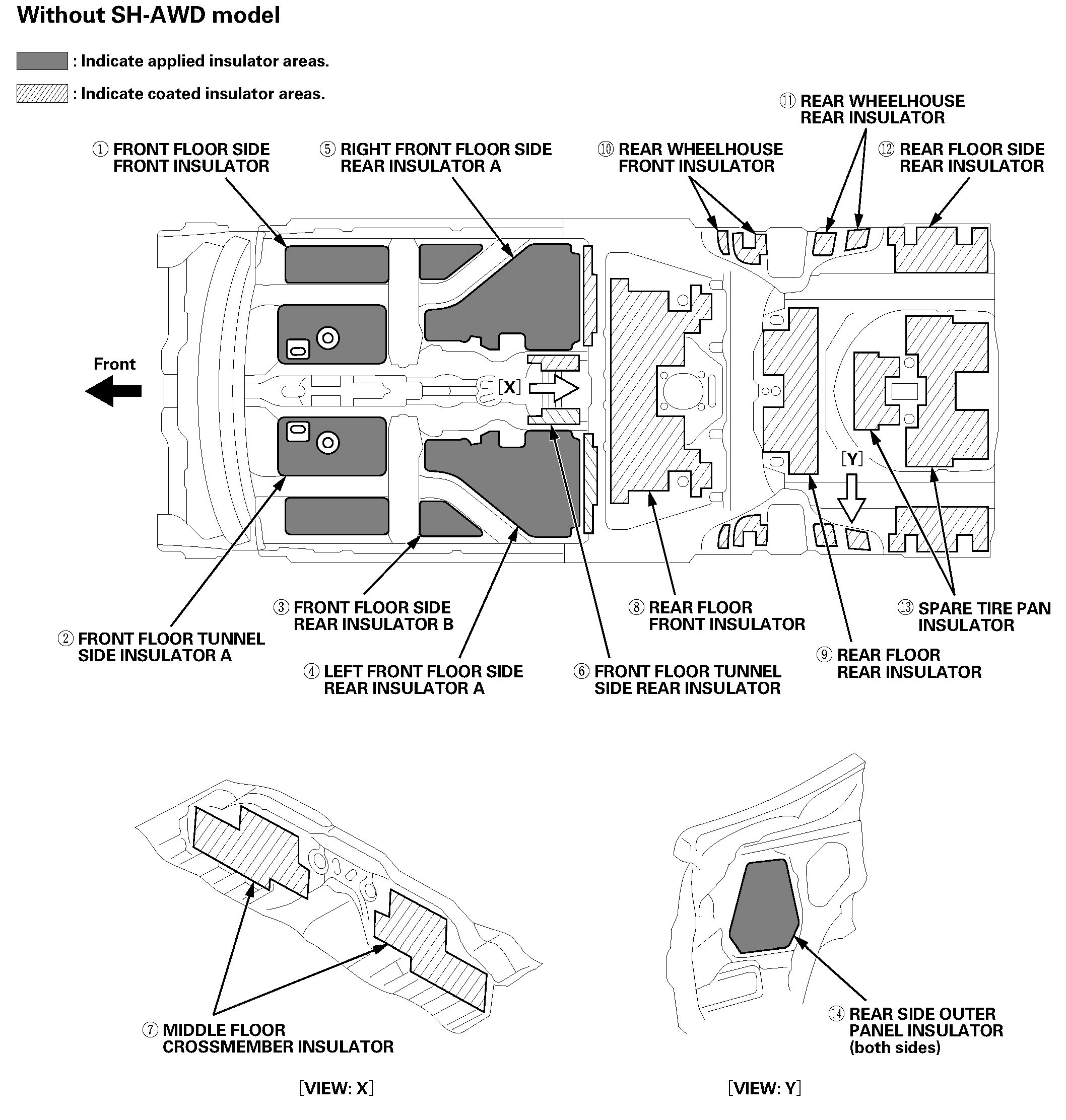

Insulator Locations
Cut new insulators, and apply as indicated.
NOTE:
Before applying, clean and degrease the floor.

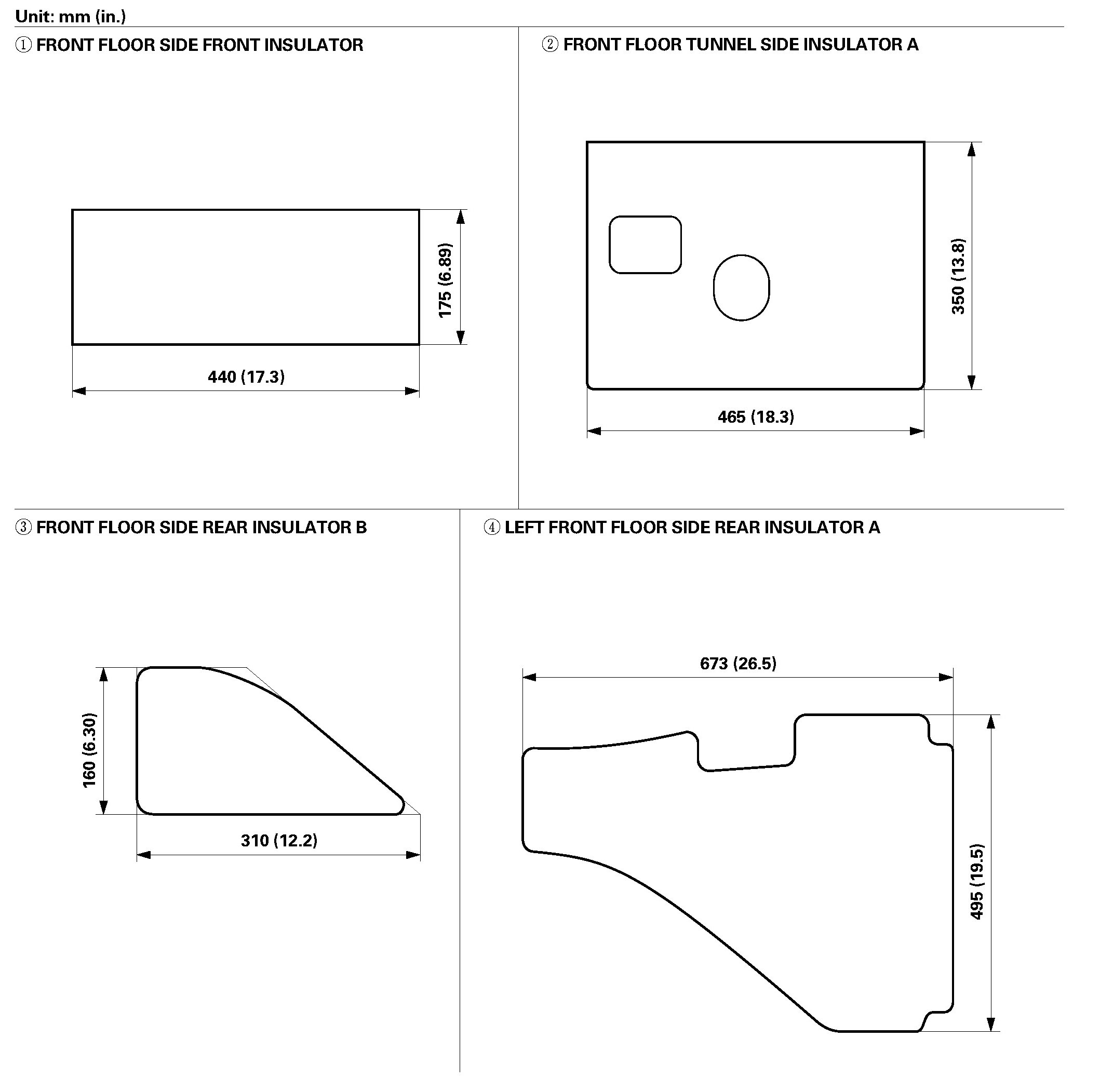

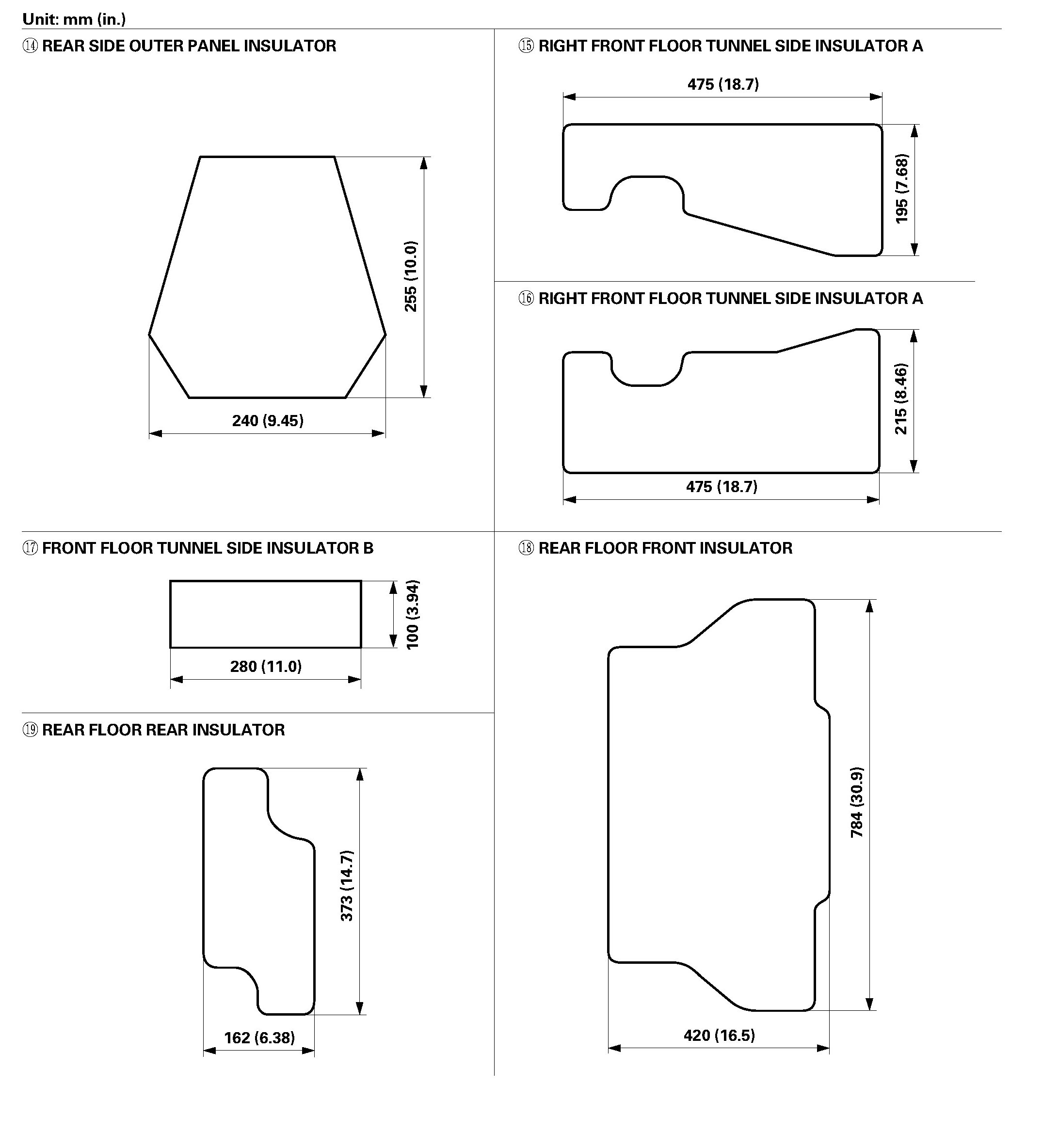

Insulator Sizes
