USB Adapter Control Unit Replacement

USB Adapter Control Unit Replacement

Without Navigation

1. Remove the center console Center Console Panel Disassembly/Reassembly.

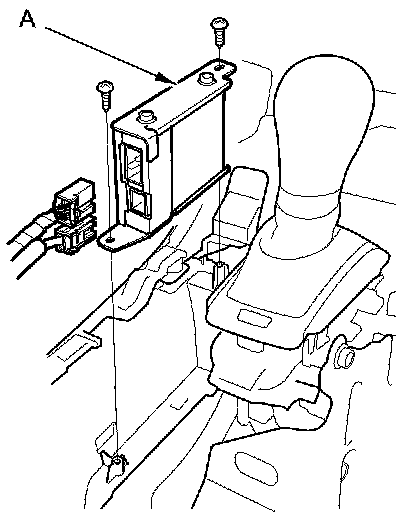

2. Disconnect the connectors from the USB adapter control unit (A), then remove the screws and USB adapter control unit.





3. Install the USB adapter control unit in the reverse order of removal.
