Navigation System DTC Troubleshooting: 2705

DTC 2705:

HFL Diag

Canada models

NOTE:

- Check the vehicle battery condition first Testing and Inspection.
- This navigation DTC sets when a problem is detected in the COMM BUS (open or short) or in the HandsFreeLink control unit.
- Before you troubleshoot, make sure to follow the General Troubleshooting Information How to Troubleshoot the Navigation System.

1. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode, then back to ON (II), or the ON mode.

2. Go into the System Diagnostic Mode, and select the Self-Diagnosis Mode in the Select Diagnosis Items menu Navigation System Diagnostic Mode.

3. Check the System Links.

Is the HFL icon red?

YES -

Go to step 4.

NO -

Intermittent failure, the system is OK at this time.�

4. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

5. Connect the HDS to the DLC Initial Inspection and Diagnostic Overview.

6. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.

7. Check for DTCs with the HDS.

Are DTCs for the HFL indicated?

YES -

Do the HFL DTC troubleshooting.�

NO -

Go to step 8.

8. Remove the center console panel Center Console Panel Removal/Installation.

9. Disconnect the HandsFreeLink control unit 28P connector, and audio-navigation unit connector H (28P).

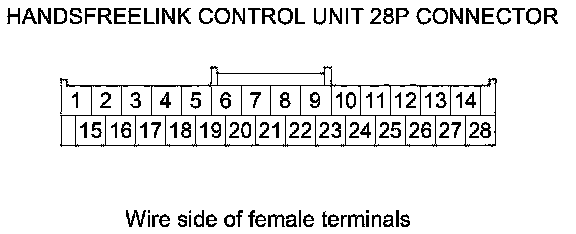

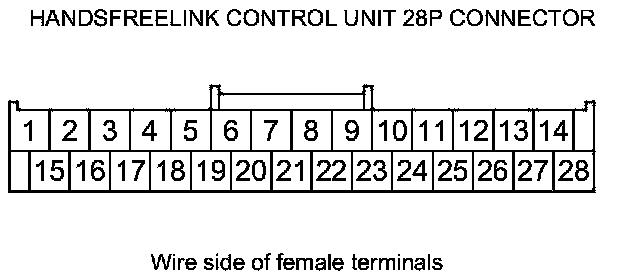

10. Check for continuity between the terminals of the HandsFreeLink control unit 28P connector according to the table.









Is there continuity between any of the terminals?

YES -

There is a short in the wire(s) between the HandsFreeLink control unit and the audio-navigation unit. Replace the affected shielded harness.�

NO -

Go to step 11.

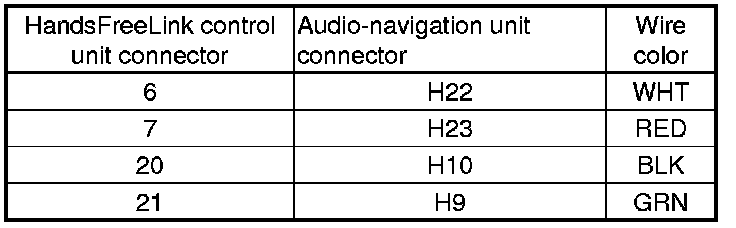

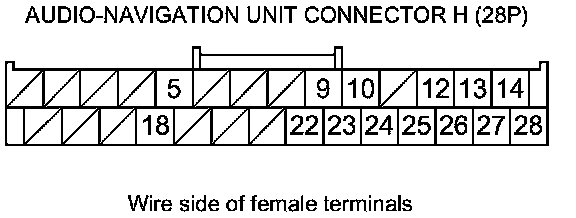

11. Check for continuity between the HandsFreeLink control unit 28P connector and audio-navigation unit connector H (28P) according to the table.













Is there continuity?

YES -

Replace the HandsFreeLink control unit Service and Repair.�

NO -

There is an open in the wire(s) between the audio-navigation unit and the HandsFreeLink control unit. Replace the affected shielded harness.�
