Home >> Acura >> 2011 >> TL AWD V6-3.7L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Climate Control System DTC Troubleshooting Index

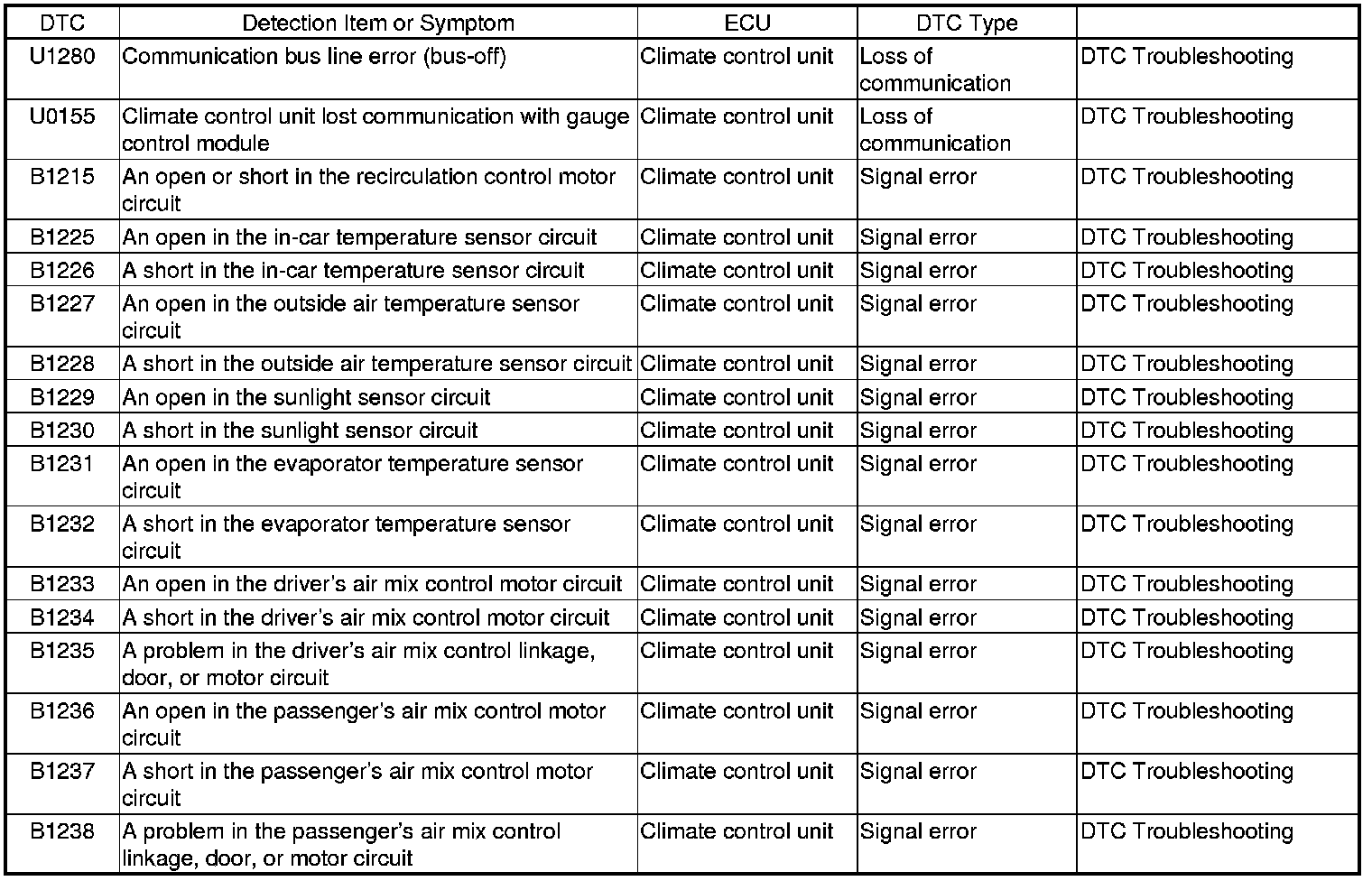

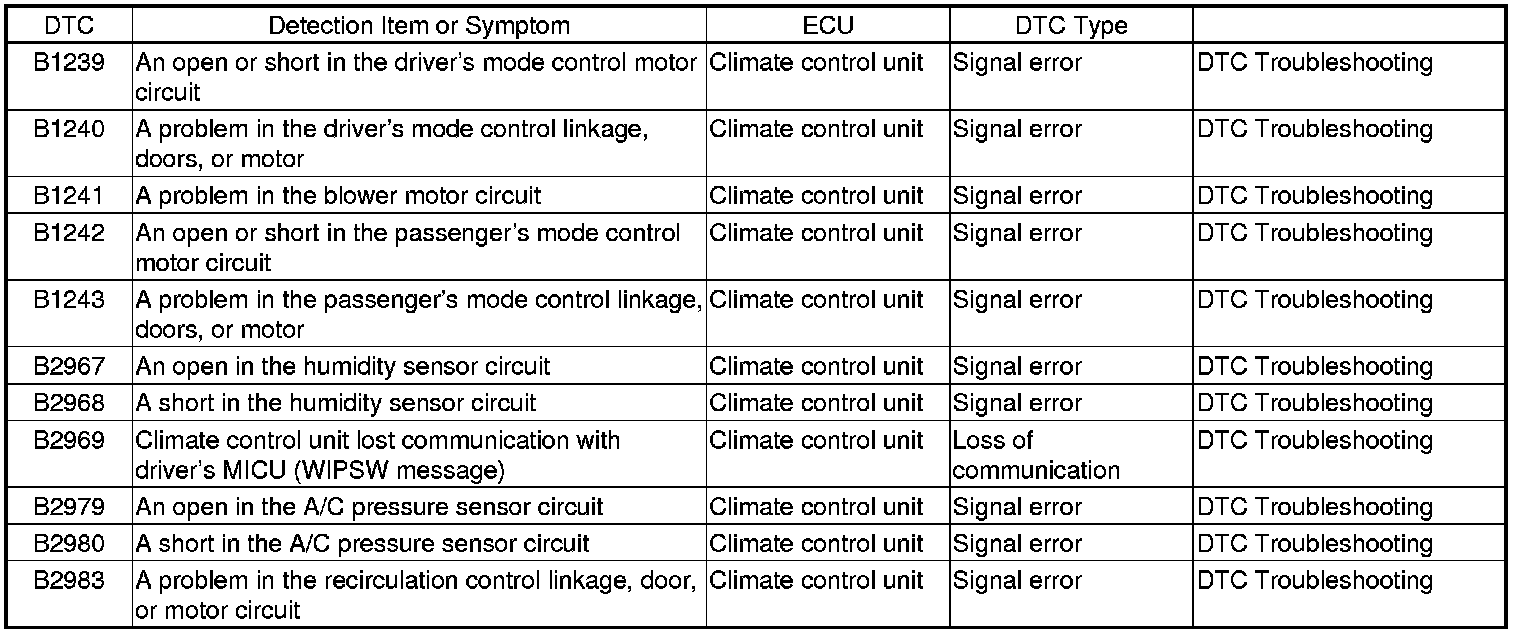

Climate Control System DTC Troubleshooting Index




Climate Control System DTC Troubleshooting Index

Checking the DTCs with the HDS





Checking the DTCs with the HDS
