A/T Output Shaft (Countershaft) Speed Sensor Replacement

A/T Output Shaft (Countershaft) Speed Sensor Replacement

1. Do the battery removal procedure. Removal and Replacement

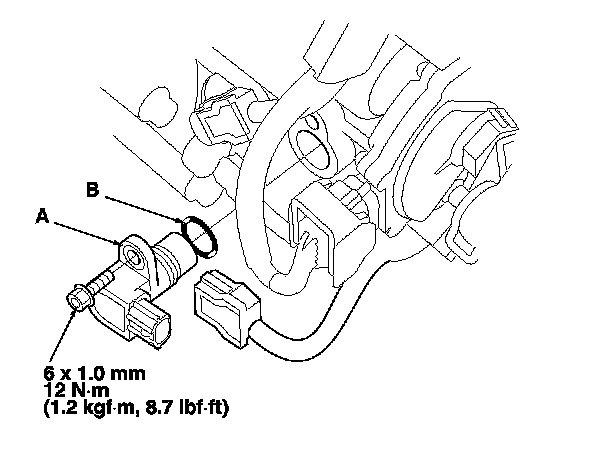

2. Disconnect the output shaft (countershaft) speed sensor connector, and remove the output shaft (countershaft) speed sensor (A).

3. Install a new O-ring (B) on a new output shaft (countershaft) speed sensor, then install the output shaft (countershaft) speed sensor and the sensor washer.

4. Check the connector for rust, dirt, or oil, then connect the connector securely.

5. Do the battery installation procedure. Removal and Replacement
