Control Unit: Service and Repair

SH-AWD Control Unit Replacement

NOTE: The SH-AWD control unit must be initialized SH-AWD Control Unit Initialization after replacement, otherwise the SH-AWD system will not function.

1. Remove the trunk front trim panel. Interior Trim Removal/Installation - Trunk Area

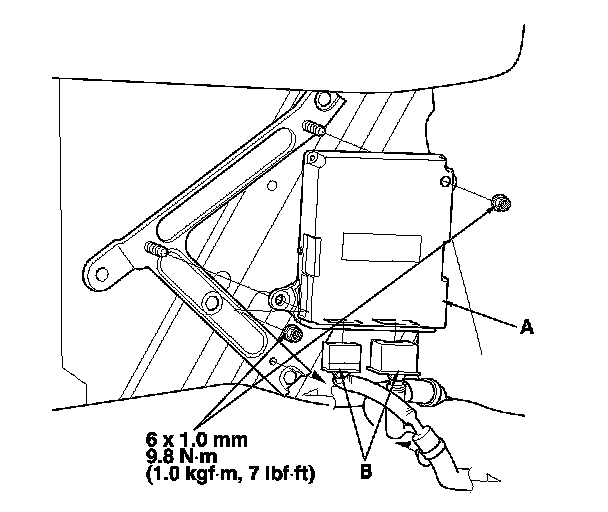

2. Remove the SH-AWD control unit (A).

3. Disconnect the SH-AWD control unit connectors (B).

4. Install the SH-AWD control unit in the reverse order of removal.
